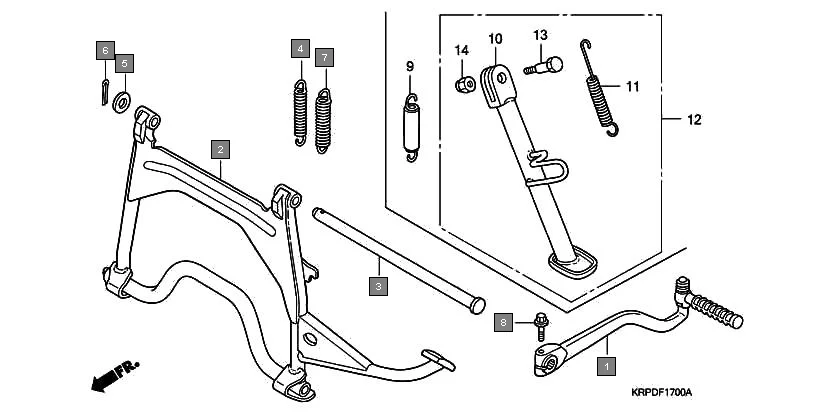

F-17 - KICK STARTER ARM/STAND
HONDA Dio SCV100FA · 9 parts
Parts in This Assembly (9)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 28300-KVT-900 | ARM ASSY., KICK STARTER | 1 | |
| 2 | 50500-KRP-950 | STAND COMP., MAIN | 1 | |
| 2 | 50500-KRP-980 | STAND COMP., MAIN | 1 | |
| 3 | 50503-GCC-000 | SHAFT, MAIN STAND | 1 | |
| 4 | 50521-KRP-980 | SUB SPRING, MAIN STAND | 1 | |
| 5 | 94102-12000 | WASHER, PLAIN, 12MM | 1 | |
| 6 | 94201-25250 | PIN, SPLIT, 2.5X25 | 1 | |
| 7 | 95014-71202 | SPRING B., MAIN STAND | 1 | |
| 8 | 95701-08025-07 | BOLT FLANGE 8X25 | 1 | |
