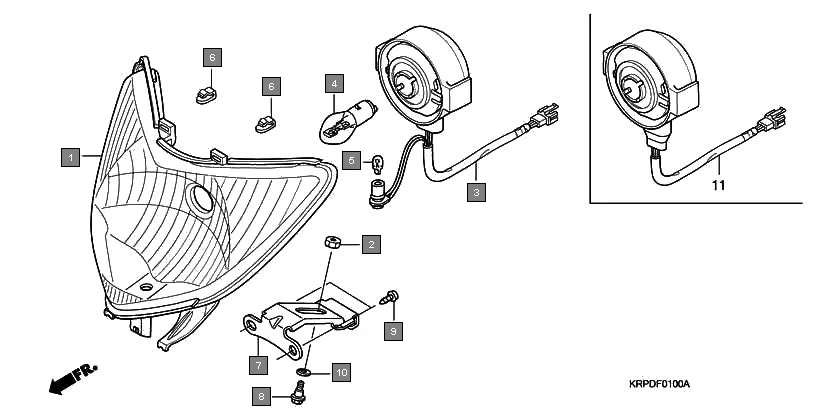

F-1 - HEADLIGHT
HONDA Dio SCV100FA · 10 parts
Parts in This Assembly (10)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33120-KRP-981 | HEADLIGHT UNIT | 1 | |
| 2 | 33128-GBL-003 | NUT, SPECIAL | 1 | |
| 3 | 33130-KRP-981 | SOCKET COMP., HEADLIGHT & POSITION LIGHT | 1 | |
| 4 | 34901-KRP-980 | BULB, HEADLIGHT (12V 35/35W) | 1 | |
| 5 | 34903-KRP-980 | BULB, POSITION LIGHT(12V 5W) | 1 | |
| 6 | 53209-GAH-000 | CLIP, HEADLIGHT | 2 | |
| 7 | 64302-KRP-900 | STAY, HANDLE ADJUST | 1 | |
| 8 | 90101-GBL-710 | BOLT, ADJUSTING | 1 | |
| 9 | 93903-25380 | SCREW TAPPING 5X16 | 2 | |
| 10 | 94111-06800 | WASHER, SPRING, 6MM | 1 | |
