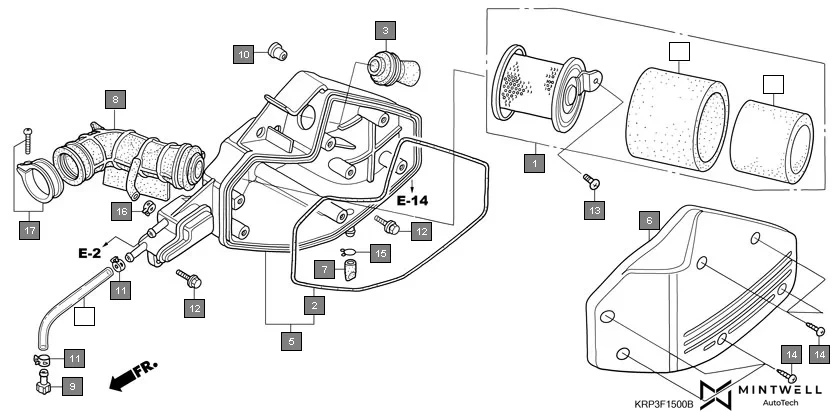

F-15 - AIR CLEANER(SCV100F3,5,9)
HONDA Dio SCV100F5 · 19 parts
Parts in This Assembly (19)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17211-KPL-900 | ELEMENT ASSY., AIR CLEANER | 1 | |
| 2 | 17214-GCC-000 | SEAL,AIR/C COVER | 1 | |
| 3 | 17215-KPL-900 | DUCT, AIR CLEANER | 1 | |
| 4 | 17216-KPL-900 | TUBE, VINYL, 8X12X210 | 1 | |
| 5 | 17225-KPL-900 | CASE SUB ASSY., AIR CLEANER | 1 | |
| 6 | 17231-KPL-900 | COVER, AIR CLEANER | 1 | |
| 7 | 17234-KCC-941 | TUBE, AIR CLEANER DRAIN | 1 | |
| 8 | 17253-KPL-900 | TUBE, AIR CLEANER CONNECTING | 1 | |
| 9 | 17370-419-700 | PLUG, BREATHER TUBE | 1 | |
| 10 | 50731-KV3-770 | COLLAR, PILLION STEP SET | 2 | |
| 11 | 90602-KPL-900 | CLAMP, D12 TUBE | 2 | |
| 12 | 93404-06040-07 | BOLT, WASH, 6 X 40 | 2 | |
| 13 | 93500-05008-0A | SCREW PAN 5 X 8 | 1 | |
| 14 | 93903-25480 | SCREW TAPPING 5X20 | 6 | |
| 15 | 95002-02130 | CLIP B 12.5 TUBE | 1 | |
| 16 | 95002-41050-00 | CLAMP, TUBE(D10.5) | 1 | |
| 17 | 95018-40250 | BAND 46, AIR/C CONN. TUBE | 1 | |
| 18 | 17213-KPL-900 | ELEMENT A, AIR CLEANER | 1 | |
| 19 | 17214-KPL-900 | ELEMENT B, AIR CLEANER | 1 | |
