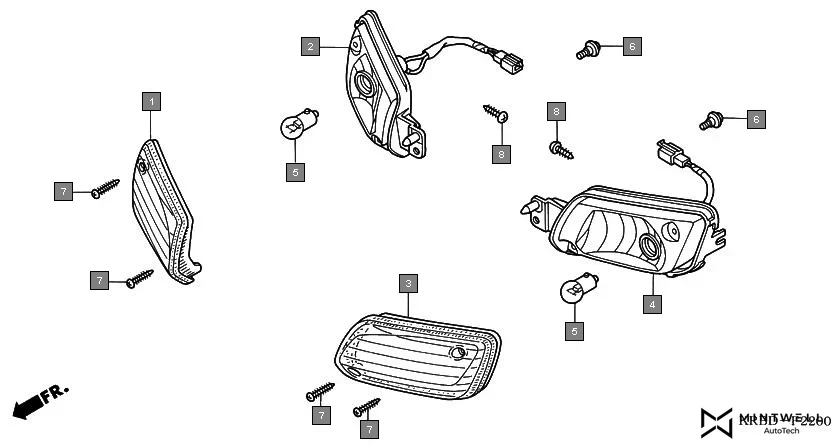

F-22-WINKER
HONDAEterno SC1504 · 8 parts
Parts in This Assembly (8)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33402-KRB-901 | LENS, R. FR. WINKER | 1 | |
| 2 | 33405-KRB-901 | BASE COMP., R. WINKER | 1 | |
| 3 | 33452-KRB-901 | LENS, L. FR. WINKER | 1 | |
| 4 | 33455-KRB-901 | BASE COMP., L. WINKER | 1 | |
| 5 | 34904-KRB-900 | BULB, WINKER (12V 10W) | 2 | |
| 6 | 91509-GE2-760 | SCREW, WASHER, 5 X 11.5 | 2 | |
| 7 | 93901-24420 | SCREW, TAPPING, 4X16 | 4 | |
| 8 | 93903-25320 | SCREW, TAPPING, 5 X 16 | 2 |
