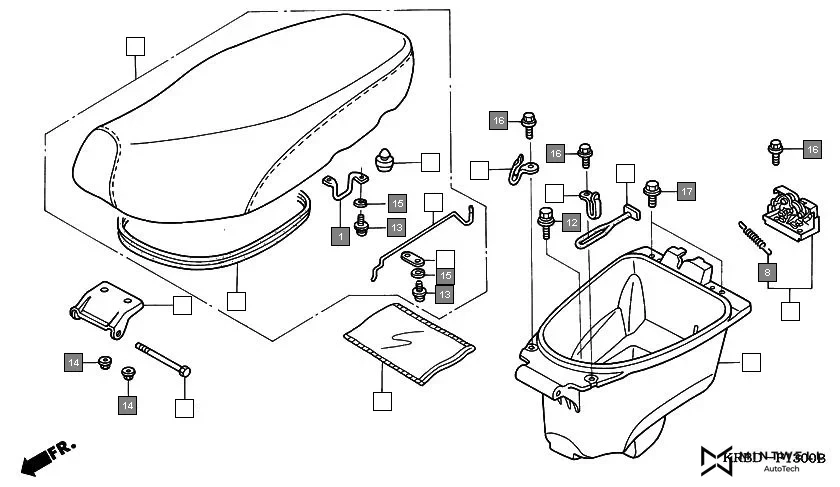

F-13-SEAT/LUGGAGE BOX
HONDAEterno SC1504 · 20 parts
Parts in This Assembly (20)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 77102-KPL-900 | BAR, SEAT LOCK | 1 | |
| 2 | 77106-KRB-900 | HOOK, HELMET | 2 | |
| 3 | 77115-KRB-900 | RUBBER, SEAL | 1 | |
| 4 | 77200-KRB-901 | SEAT COMP., DOUBLE | 1 | |
| 5 | 77201-KRB-900 | HINGE, SEAT | 1 | |
| 6 | 77206-KRB-900 | RUBBER, SEAT SETTING | 2 | |
| 7 | 77235-KRB-901 | CATCH COMP., SEAT | 1 | |
| 8 | 77236-GBL-000 | SPRING SEAT CATCH | 1 | |
| 9 | 77251-KPL-900 | BAG, SERVICE BOOK | 1 | |
| 10 | 81250-KRB-901 | BOX, LUGGAGE | 1 | |
| 11 | 89012-KPL-900 | BAND, TOOL | 1 | |
| 12 | 93404-08016-07 | BOLT-WASHER, 8X16 | 1 | |
| 13 | 93500-04010-0H | SCREW, PAN, 4X10 | 3 | |
| 14 | 94050-06000 | NUT, FLANGE, 6 MM | 2 | |
| 15 | 94111-04800 | WASHER, SPRING, 4MM | 3 | |
| 16 | 95701-06016-08 | BOLT, FLANGE, 6X16 | 4 | |
| 17 | 95701-08020-07 | BOLT, FLANGE, 8 X 20 | 2 | |
| 18 | 90106-KEM-900 | BOLT, SEAT HINGE | 1 | |
| 19 | 77209-KRB-900 | PLATE, | 1 | |
| 20 | 81256-KRB-900 | ROD, BODY OPENER | 1 |
