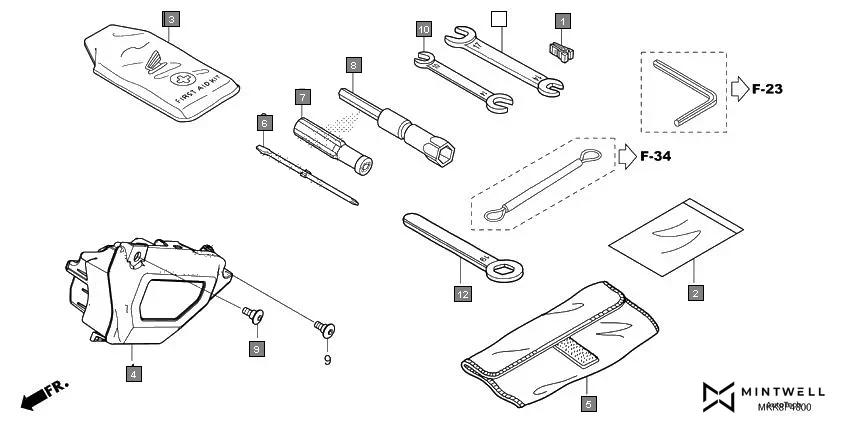

F-48 - TOOL
HONDA Africa Twin CRF1000DK · 13 parts
Parts in This Assembly (13)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 38235-S04-003 | PULLER, MINI FUSE(SUMITOMO) | 1 | |
| 2 | 77251-GR1-000 | BAG, SERVICE BOOK | 1 | |
| 3 | 84510-KWP-901 | AID KIT, FIRST (STERIMED SURGICALS) | 1 | |
| 3 | 84510-KWP-H00 | AID KIT, FIRST (MONOCHEM GRAPHICS) | 1 | |
| 4 | 89050-MKK-D00 | BOX, TOOL | 1 | |
| 5 | 89101-MBW-000 | BAG, TOOL | 1 | |
| 6 | 89102-538-000 | SCREW, DRIVER PLUS/MINUS | 1 | |
| 7 | 89103-538-000 | GRIP, SCREW DRIVER | 1 | |
| 8 | 89216-HL4-A00 | WRENCH, PLUG(14MM) | 1 | |
| 9 | 90117-MGS-D30 | SCREW, PAN, 6X16 | 2 | |
| 10 | 99001-10140 | SPANNER, 10 X 14 | 1 | |
| 11 | 99001-14170 | SPANNER, 14 X 17 | 1 | |
| 12 | 99006-19000 | WRENCH, EYE, 19MM | 1 | |
