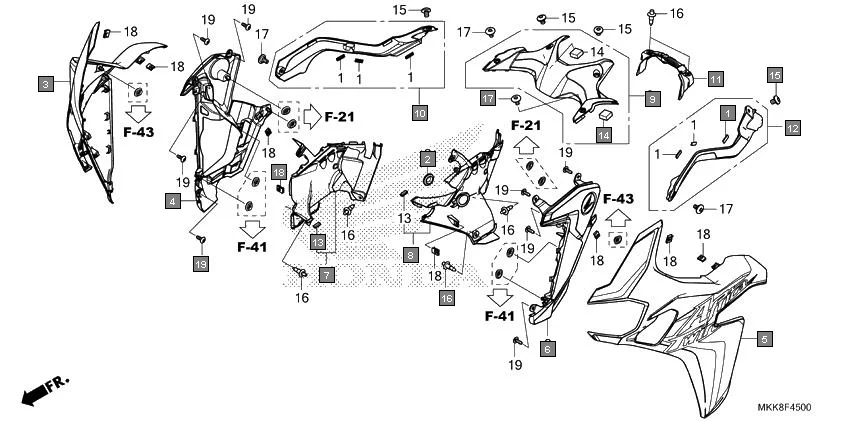

F-45 - MIDDLE COWL
HONDA Africa Twin CRF1000DK · 19 parts
Parts in This Assembly (19)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17541-MJP-G50 | FASTENER, DUAL LOCK(8X25) | 6 | |
| 2 | 39119-MJG-640 | GROMMET, AUDIO BOX | 1 | |
| 3 | 64310-MKK-DL0ZA | COWL SET, R. MIDDLE(WL) *TYPE1* | 1 | |
| 4 | 64320-MJP-G51 | COVER SET, R. FR. SIDE(WL) | 1 | |
| 5 | 64360-MKK-DL0ZA | COWL SET, L. MIDDLE(WL) *TYPE1* | 1 | |
| 6 | 64370-MJP-G51 | COVER SET, L. FR. SIDE(WL) | 1 | |
| 7 | 64521-MJP-G50 | COVER, R. INNER | 1 | |
| 8 | 64571-MJP-G50 | COVER, L. INNER | 1 | |
| 9 | 64611-MJP-G50 | COVER, FR. TANK | 1 | |
| 10 | 64711-MJP-G50 | COVER, R. TANK SIDE | 1 | |
| 11 | 64712-MJP-G50 | COVER, RR. TANK | 1 | |
| 12 | 64761-MJP-G50 | COVER, L. TANK SIDE | 1 | |
| 13 | 77212-MFJ-D00 | PROTECTOR, RUBBER | 2 | |
| 14 | 83605-MY5-G30 | RUBBER A, SIDE COVER | 2 | |
| 15 | 90106-MKK-D00 | BOLT, SPECIAL, 6X8 | 4 | |
| 16 | 90116-SP0-003 | CLIP, BUMPER SEAL | 6 | |
| 17 | 90122-MJK-N20 | SCREW, SPECIAL, 5X11 | 4 | |
| 18 | 90677-KAN-961 | NUT CLIP 5MM | 8 | |
| 19 | 93903-24380 | SCREW TAPPING, 4 X 12 | 8 | |
