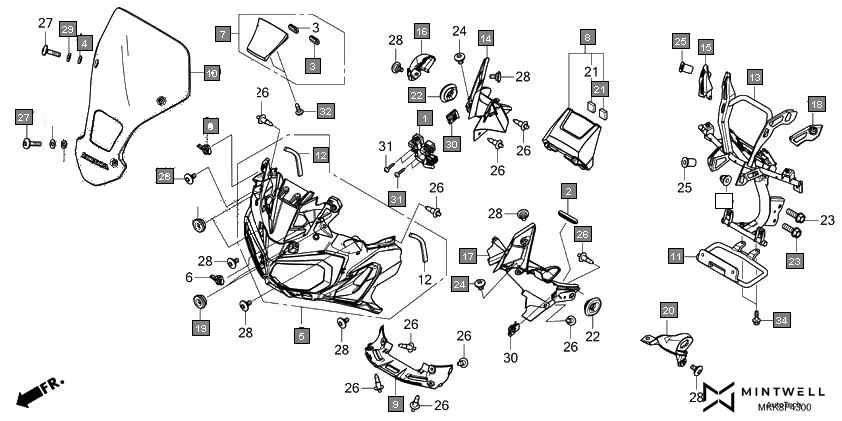

F-43 - FRONT COVER
HONDA Africa Twin CRF1000DK · 34 parts
Parts in This Assembly (34)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 35240-MJP-G81 | SWITCH ASSY., G MODE & RR. ABS CANCEL | 1 | |
| 2 | 39119-MJG-640 | GROMMET, AUDIO BOX | 1 | |
| 3 | 64121-MEJ-000 | RUBBER, PROTECTOR | 2 | |
| 4 | 64205-166-610 | WASHER, SCREEN SETTING | 4 | |
| 5 | 64211-MKK-D00 | COVER ASSY., FR. | 1 | |
| 6 | 64213-MJN-A01 | CLIP, TWIST | 2 | |
| 7 | 64215-MKK-D00 | COVER, FR. UPPER | 1 | |
| 8 | 64218-MKK-D00 | COVER, METER | 1 | |
| 9 | 64221-MJP-G50 | SPOILER, FR. | 1 | |
| 10 | 64250-MJP-G50ZA | WINDSCREEN SET(WL) *TYPE1* | 1 | |
| 11 | 64305-MJP-MF0 | STAY, FR. NUMBER PLATE | 1 | |
| 12 | 64312-MJP-G50 | SEAL B, MIDDLE COWL | 2 | |
| 13 | 64501-MKK-D00 | STAY COMP., FR. COWL | 1 | |
| 14 | 64531-MKK-D50 | COVER, R. INNER PANEL | 1 | |
| 15 | 64532-MJP-G50 | COVER, R. COWL STAY | 1 | |
| 16 | 64541-MKK-D00 | COVER, R. FR. WINKER | 1 | |
| 17 | 64581-MKK-D00 | COVER, L. INNER PANEL | 1 | |
| 18 | 64582-MJP-G50 | COVER, L. COWL STAY | 1 | |
| 19 | 64586-MBW-D20 | RUBBER, AIR DUCT COVER SETTING | 4 | |
| 20 | 64591-MKK-D00 | COVER, L. FR. WINKER | 1 | |
| 21 | 67113-MCT-940 | RUBBER, GARNISH | 2 | |
| 22 | 83551-GE2-000 | GROMMET, AIR CLENER CASE | 2 | |
| 23 | 90036-GHB-680 | BOLT, FLANGE, 8X25 | 2 | |
| 24 | 90106-MKK-D00 | BOLT, SPECIAL, 6X8 | 2 | |
| 25 | 90111-KW3-003 | NUT, COWL SETTING, 5MM | 4 | |
| 26 | 90116-SP0-003 | CLIP, BUMPER SEAL | 10 | |
| 27 | 90118-MJP-G50 | SCREW, PAN, 5X20(SUS) | 4 | |
| 28 | 90122-MJK-N20 | SCREW, SPECIAL, 5X11 | 8 | |
| 29 | 90504-964-000 | WASHER, THRUST, 5MM | 4 | |
| 30 | 90677-KAN-961 | NUT CLIP 5MM | 2 | |
| 31 | 93901-22320 | SCREW TAPPING 3X12 | 4 | |
| 32 | 93903-24280 | SCREW, TAPPING, 4X10 | 2 | |
| 33 | 94050-08070 | NUT, FLANGE, 8MM | 1 | |
| 34 | 95701-06014-00 | BOLT, FLANGE, 6 X 14 | 2 | |
