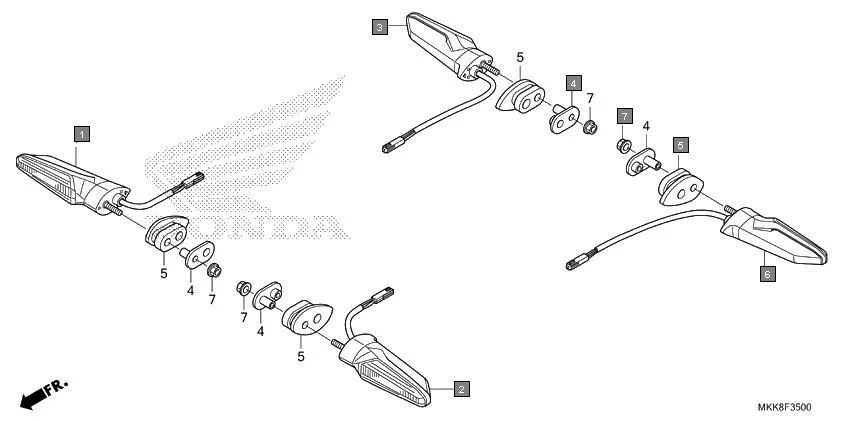

F-35 - WINKER
HONDA Africa Twin CRF1000DK · 7 parts
Parts in This Assembly (7)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33400-MJP-B71 | WINKER ASSY., R. FR | 1 | |
| 2 | 33450-MJP-B71 | WINKER ASSY., L. FR | 1 | |
| 3 | 33600-MJP-B71 | WINKER ASSY., R. RR | 1 | |
| 4 | 33611-MEE-D00 | COLLAR, WINKER | 4 | |
| 5 | 33612-MEE-D00 | RUBBER, WINKER MOUNTING | 4 | |
| 6 | 33650-MJP-B71 | WINKER ASSY., L. RR | 1 | |
| 7 | 94050-06070 | NUT, FLANGE 6 MM | 4 | |
