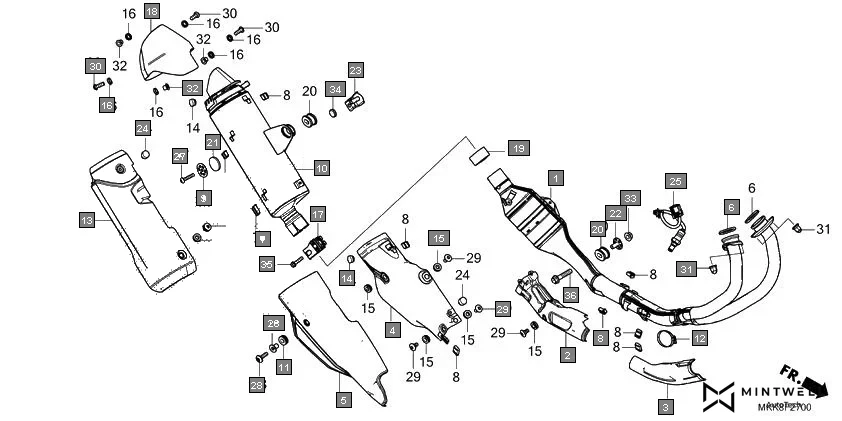

F-27 - EXHAUST MUFFLER
HONDA Africa Twin CRF1000DK · 36 parts
Parts in This Assembly (36)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 18150-MKK-D00 | PIPE COMP., EX. | 1 | |
| 2 | 18180-MKK-D00 | COVER COMP. A, EX. PIPE | 1 | |
| 3 | 18185-MKK-D00 | COVER COMP. B, EX. PIPE | 1 | |
| 4 | 18190-MKK-D00 | COVER COMP. C, EX. PIPE | 1 | |
| 5 | 18240-MKK-D00 | COVER, EX. PIPE OUTER | 1 | |
| 6 | 18291-MM8-880 | GASKET, EX. PIPE | 2 | |
| 7 | 18293-MJP-G50 | RUBBER, PROTECTOR PACKING | 1 | |
| 8 | 18293-MN0-000 | RUBBER, PROTECTOR | 8 | |
| 9 | 18309-MJP-G50 | WASHER, 8.5X43 | 1 | |
| 10 | 18310-MKK-H10 | MUFFLER COMP., EX. | 1 | |
| 11 | 18316-KFT-620 | RUBBER, PROTECTOR | 1 | |
| 12 | 18329-MEN-A30 | BAND, EXHAUST PROTECTOR | 1 | |
| 13 | 18340-MKK-D00 | COVER COMP., MUFFLER | 1 | |
| 14 | 18345-KTK-000 | RUBBER, MUFFLER PROTECTOR | 2 | |
| 15 | 18345-MBT-610 | RUBBER, PROTECTOR, MOUNT | 6 | |
| 16 | 18365-MEE-D00 | WASHER, RUBBER, 8.5X13X2.5 | 6 | |
| 17 | 18371-MJP-G50 | BAND, MUFFLER | 1 | |
| 18 | 18380-MKK-D00 | COVER, TAIL CAP | 1 | |
| 19 | 18391-ML0-003 | PACKING, MUFFLER | 1 | |
| 20 | 18421-MJP-G50 | RUBBER, MUFFLER MOUNTING | 2 | |
| 21 | 18422-MJP-G50 | WASHER, RUBBER | 1 | |
| 22 | 18423-MGC-N20 | COLLAR, EX. PIPE MOUNTING | 1 | |
| 23 | 18423-MJP-G50 | COLLAR, MUFFLER MOUNTING | 1 | |
| 24 | 18443-MCW-D60 | RUBBER, PROTECTOR | 2 | |
| 25 | 36531-MKK-D01 | SENSOR, OXYGEN | 1 | |
| 26 | 83505-KGB-610 | COLLAR, COVER MOUNTING | 1 | |
| 27 | 90109-MBT-611 | BOLT, SOCKET, 8X45 | 1 | |
| 28 | 90112-MBB-000 | BOLT, SPECIAL, 6X22 | 1 | |
| 29 | 90113-GFP-B00 | SCREW, PAN, 6X12 | 5 | |
| 30 | 90155-MGE-000 | BOLT, SPECIAL, 6X18 | 3 | |
| 31 | 90304-ME1-670 | NUT, CAP, 8MM | 4 | |
| 32 | 90501-GN5-830 | COLLAR, 8.5X7 | 3 | |
| 33 | 94050-08040 | NUT, FLANGE, 8MM | 1 | |
| 34 | 95011-63000 | RUBBER C, STAND STOPPER | 1 | |
| 35 | 96400-08035-04 | BOLT, FLANGE, 8X35 | 2 | |
| 36 | 96400-08040-04 | BOLT, FLANGE, 8X40 | 1 | |
