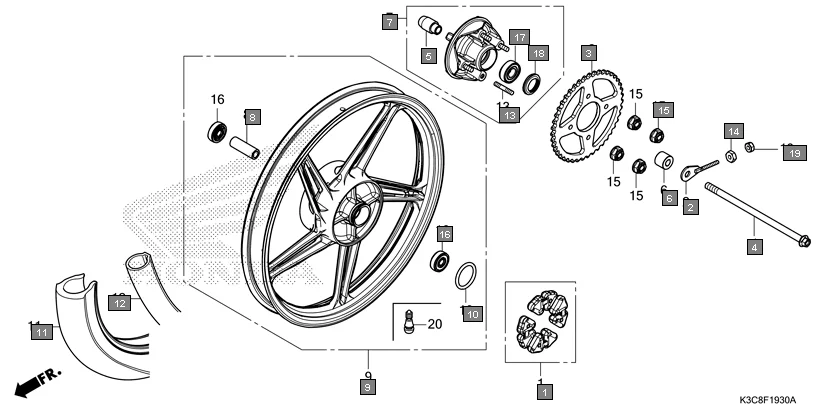

F-19-30-REAR WHEEL
HONDAShine100 DX CD100RNT · 19 parts
Parts in This Assembly (19)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 06410-KWS-901 | DAMPER SET, WHEEL | 1 | |
| 2 | 40543-KTE-910 | ADJUSTER COMP., R. CHAIN | 1 | |
| 3 | 41201-K3C-D10 | SPROCKET, FINAL DRIVEN(43T) | 1 | |
| 4 | 42301-K3C-D10 | AXLE, RR. WHEEL | 1 | |
| 5 | 42303-K3C-D10 | SLEEVE, RR. WHEEL | 1 | |
| 6 | 42304-KWS-900 | COLLAR, RR. AXLE SLEEVE | 1 | |
| 7 | 42615-K3C-D10 | FLANGE SUB ASSY., RR. DRIVEN | 1 | |
| 8 | 42620-KTE-D80 | COLLAR, RR. AXLE DISTANCE | 1 | |
| 9 | 42650-K3C-D10ZA | WHEEL SUB ASSY., RR. *NH105*MAT BLACK(#15-#20) | 1 | |
| 10 | 42653-001-004 | O-RING, 40.5X3 (NIPPON DUST KEEPER) | 1 | |
| 11 | 42711-K3C-D11 | TIRE, RR.(MRF)(3.00-17 50P 6PR) | 1 | |
| 12 | 42712-K3C-D11 | TUBE, TIRE | 1 | |
| 13 | 90128-KTE-910 | BOLT,STUD,8X20 | 4 | |
| 14 | 90302-KBP-900 | NUT SPL 6 MM | 1 | |
| 15 | 90309-KTE-911 | NUT,FLG PT 8MM | 4 | |
| 16 | 91052-K23-903 | BEARING, RADIAL BALL, 6301U (NEI) | 2 | |
| 17 | 91081-KYJ-711 | BEARING, RADIAL BALL, 6203UU (NEI) | 1 | |
| 18 | 91251-KGH-901 | DUST SEAL,27X40X4.5 | 1 | |
| 19 | 94001-06000-0S | NUT, HEX., 6 MM | 1 |
