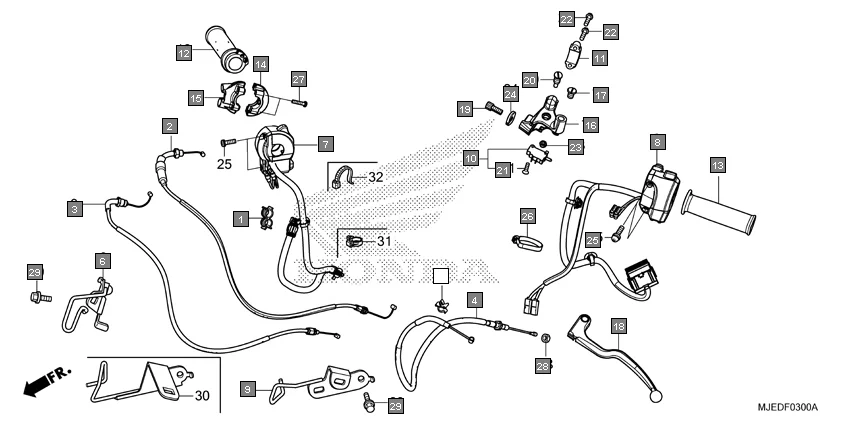

F-3-HANDLE LEVER/SWITCH/CABLE
HONDACBR650F CBR650FAG · 29 parts
Parts in This Assembly (29)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17450-KY7-740 | CLIP, TUBE | 1 | |
| 2 | 17910-MJE-D01 | CABLE COMP. A, THROTTLE | 1 | |
| 3 | 17920-MJE-D01 | CABLE COMP. B, THROTTLE | 1 | |
| 4 | 22870-MJE-D01 | CABLE COMP., CLUTCH | 1 | |
| 5 | 32172-GJ1-003 | CLIP B, HARNESS | 1 | |
| 6 | 35106-MJE-D00 | GUIDE COMP., CABLE | 1 | |
| 7 | 35130-MJE-D01 | SWITCH ASSY., ENGINE STOP | 1 | |
| 8 | 35200-MJE-D01 | SWITCH ASSY., WINKER | 1 | |
| 9 | 35205-MJE-D00 | STAY, L. CLIP | 1 | |
| 10 | 35335-MCJ-751 | SWITCH SET, CLUTCH | 1 | |
| 11 | 45517-KCW-870 | HOLDER, MASTER CYLINDER | 1 | |
| 12 | 53140-MGS-D30 | GRIP COMP., THROTTLE | 1 | |
| 13 | 53150-MGS-D30 | GRIP, L. HANDLE | 1 | |
| 14 | 53167-MGS-D30 | HOUSING, UPPER THROTTLE | 1 | |
| 15 | 53168-MGS-D30 | HOUSING, UNDER THROTTLE | 1 | |
| 16 | 53172-MJE-D00 | HOLDER, CLUTCH LEVER | 1 | |
| 17 | 53174-116-670 | PLUG HANDLE LEVER | 1 | |
| 18 | 53178-MJE-D00 | LEVER COMP., L. HANDLE | 1 | |
| 19 | 53192-MJE-D00 | BOLT, WIRE ADJUSTING | 1 | |
| 20 | 90113-438-000 | BOLT, HANDLE LEVER PIVOT | 1 | |
| 21 | 90124-MCJ-752 | SCREW, FLAT, 3X16 | 1 | |
| 22 | 90131-MJE-D00 | BOLT, FLANGE, 6X22 | 2 | |
| 23 | 90301-782-000 | NUT, U, 6MM | 1 | |
| 24 | 90321-KT7-760 | NUT, FIXING | 1 | |
| 25 | 90508-MGS-D30 | SCREW-WASHER, 5X16 | 4 | |
| 26 | 90651-KV6-003 | BAND WIRE | 1 | |
| 27 | 93500-05022-0G | SCREW, PAN, 5X22 | 2 | |
| 28 | 94002-08070-0S | NUT, HEX., 8MM | 1 | |
| 29 | 95701-06010-08 | BOLT, FLANGE, 6X10 | 2 |
