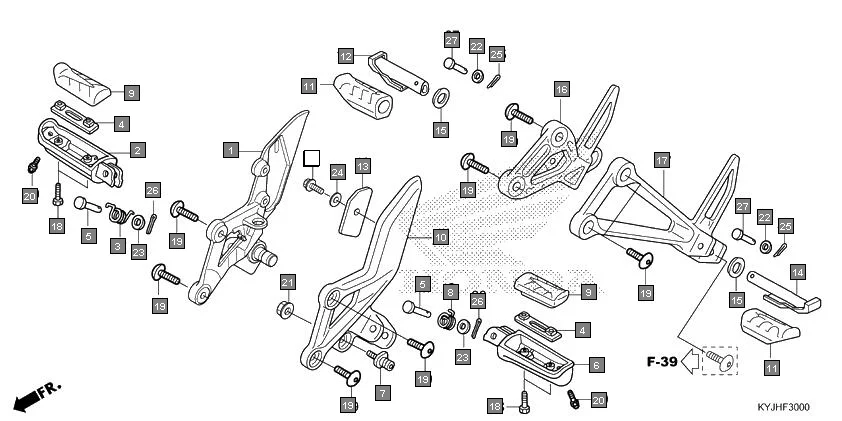

F-30-STEP
HONDACBR250R CBR250RAJ · 29 parts
Parts in This Assembly (29)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 50600-KYJ-710 | HOLDER, R. STEP | 1 | |
| 2 | 50612-MM5-000 | ARM, R. STEP | 1 | |
| 3 | 50617-445-840 | SPG. R STEP RETURN | 1 | |
| 4 | 50619-MM5-000 | PLATE, STEP SETTING | 2 | |
| 5 | 50639-ML0-010 | PIN, STEP BAR | 2 | |
| 6 | 50642-MM5-000 | ARM, L. STEP | 1 | |
| 7 | 50643-KYJ-900 | PIVOT, CHANGE PEDAL | 1 | |
| 8 | 50644-445-840 | SPG. L STEP RETURN | 1 | |
| 9 | 50661-KYJ-900 | RUBBER, MAIN STEP | 2 | |
| 10 | 50700-KYJ-710 | HOLDER, L. STEP | 1 | |
| 11 | 50710-KYJ-900 | RUBBER, PILLION STEP | 2 | |
| 12 | 50711-KET-600 | BAR, R. PILLION STEP | 1 | |
| 13 | 50711-KYJ-900 | WEIGHT, STEP HOLDER | 1 | |
| 14 | 50712-KET-600 | BAR, L. PILLION STEP | 1 | |
| 15 | 50714-KBA-930 | PLATE, PILLION STEP SIDE | 2 | |
| 16 | 50715-KYJ-710 | HOLDER, R. PILLION STEP | 1 | |
| 17 | 50725-KYJ-710 | HOLDER, L. PILLION STEP | 1 | |
| 18 | 90115-MV9-000 | BOLT, M. STEP RUB.SET | 4 | |
| 19 | 90127-KYJ-900 | BOLT, SOCKET, 8X22 | 8 | |
| 20 | 92501-08008-0A | BOLT, CAP, 8X8 | 2 | |
| 21 | 94050-08080 | NUT, FLANGE, 8MM | 1 | |
| 22 | 94101-06000 | WASHER, PLAIN, 6 MM | 2 | |
| 23 | 94102-08000 | WASHER, PLAIN, 8MM | 2 | |
| 24 | 94103-06700 | WASHER, PLAIN, 6 MM | 1 | |
| 25 | 94201-16150 | PIN, SPLIT, 1.6 X 15 | 2 | |
| 26 | 94201-20150 | PIN, SPLIT, 2.0 X 15 | 2 | |
| 27 | 95015-82000 | PIN B, PILLION STEP | 2 | |
| 28 | 95701-06010-07 | BOLT, FLANGE, 6 X 10 | 1 | |
| 28 | 95702-06010-07 | BOLT, FLANGE, 6X10 | 1 |
