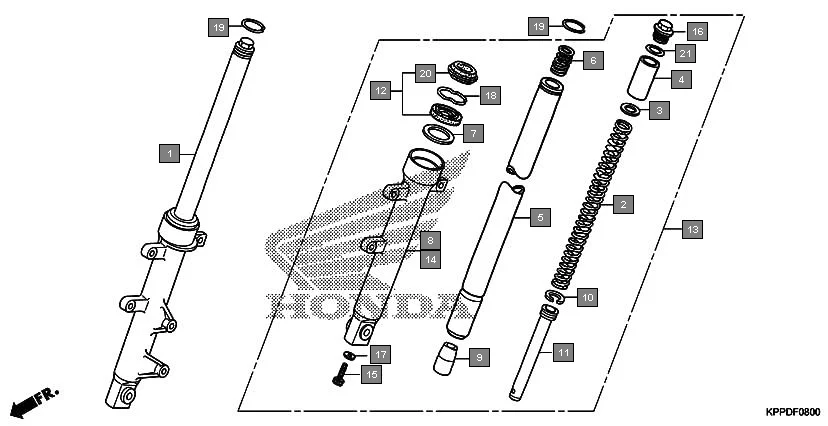

F-8 - FRONT FORK
HONDA CBR150R CBR150RC · 21 parts
Parts in This Assembly (21)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 51400-KPP-N01 | FORK ASSY., R. FR.(SHOWA) | 1 | |
| 2 | 51401-KPP-N01 | SPRING, FR. FORK | 2 | |
| 3 | 51403-447-731 | PLATE, SPRING JOINT(SHOWA) | 2 | |
| 4 | 51403-KCC-901 | COLLAR, SPRING(SHOWA) | 2 | |
| 5 | 51410-KPP-N01 | PIPE COMP., FR. FORK | 2 | |
| 6 | 51412-GC4-003 | SPRING, FR. CUSHION REBOUND | 2 | |
| 7 | 51412-KFN-851 | SPRING, BACK UP | 2 | |
| 8 | 51420-KPP-N01 | CASE COMP., R. BOTTOM | 1 | |
| 9 | 51432-KFN-851 | PIECE, OIL LOCK | 2 | |
| 10 | 51437-GS3-003 | RING, PISTON | 2 | |
| 11 | 51440-KPP-N01 | PIPE COMP., SEAT | 2 | |
| 12 | 51490-KRM-852 | SEAL SET, FR. FORK | 2 | |
| 13 | 51500-KPP-N01 | FORK ASSY., L. FR.(SHOWA) | 1 | |
| 14 | 51520-KPP-N01 | CASE COMP., L. BOTTOM | 1 | |
| 15 | 90116-KAG-901 | BOLT, SOCKET, 8MM(SHOWA) | 2 | |
| 16 | 90123-KPP-N01 | BOLT A, FR. FORK | 2 | |
| 17 | 90544-KFN-851 | WASHER, SPECIAL, 8MM | 2 | |
| 18 | 90601-354-000 | RING, OIL SEAL STOP | 2 | |
| 19 | 90651-KR0-000 | RING, SNAP | 2 | |
| 20 | 91254-GAA-003 | DUST SEAL | 2 | |
| 21 | 94608-50000 | O-RING, 23X2.8 | 2 | |
