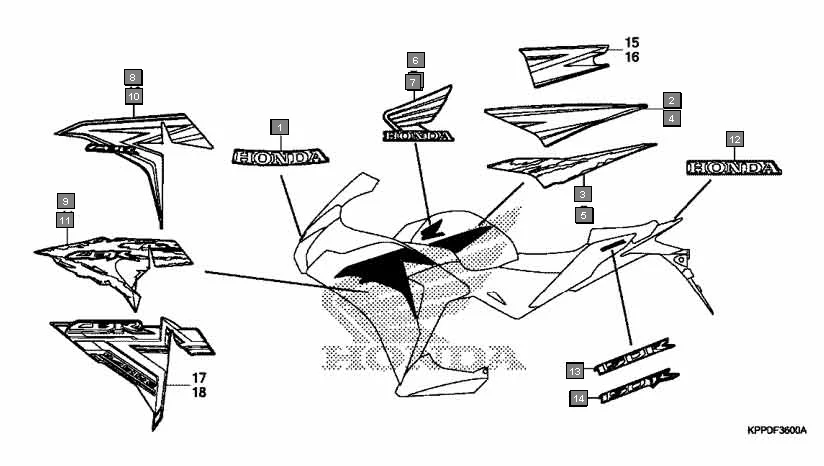

F-36 - STRIPE
HONDA CBR150R CBR150RC · 29 parts
Parts in This Assembly (29)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 86101-KPP-N00ZA | MARK, HONDA *TYPE2* | 1 | |
| 1 | 86101-KPP-N00ZB | MARK, HONDA *TYPE1* | 1 | |
| 2 | 86173-KPP-N00ZA | STRIPE, R. FUEL TANK *TYPE2* | 1 | |
| 2 | 86173-KPP-N00ZB | STRIPE, R. FUEL TANK *TYPE1* | 1 | |
| 3 | 86173-KPP-N10ZA | STRIPE, R. FUEL TANK *TYPE2* | 1 | |
| 3 | 86173-KPP-N10ZB | STRIPE, R. FUEL TANK *TYPE1* | 1 | |
| 4 | 86174-KPP-N00ZA | STRIPE, L. FUEL TANK *TYPE2* | 1 | |
| 4 | 86174-KPP-N00ZB | STRIPE, L. FUEL TANK *TYPE1* | 1 | |
| 5 | 86174-KPP-N10ZA | STRIPE, L. FUEL TANK *TYPE2* | 1 | |
| 5 | 86174-KPP-N10ZB | STRIPE, L. FUEL TANK *TYPE1* | 1 | |
| 6 | 86201-KPP-N00ZA | MARK, R. WING *TYPE3* | 1 | |
| 6 | 86201-KPP-N00ZB | MARK, R. WING *TYPE2* | 1 | |
| 6 | 86201-KPP-N00ZC | MARK, R. WING *TYPE1* | 1 | |
| 7 | 86202-KPP-N00ZA | MARK, L. WING *TYPE3* | 1 | |
| 7 | 86202-KPP-N00ZB | MARK, L. WING *TYPE2* | 1 | |
| 7 | 86202-KPP-N00ZC | MARK, L. WING *TYPE1* | 1 | |
| 8 | 86643-KPP-N00ZA | STRIPE, R. MIDDLE COWL *TYPE2* | 1 | |
| 8 | 86643-KPP-N00ZB | STRIPE, R. MIDDLE COWL *TYPE1* | 1 | |
| 9 | 86643-KPP-N10ZB | STRIPE, R. MIDDLE COWL *TYPE1* | 1 | |
| 9 | 86643-KPP-N10ZC | STRIPE, R. MIDDLE COWL *TYPE2* | 1 | |
| 10 | 86644-KPP-N00ZA | STRIPE, L. MIDDLE COWL *TYPE2* | 1 | |
| 10 | 86644-KPP-N00ZB | STRIPE, L. MIDDLE COWL *TYPE1* | 1 | |
| 11 | 86644-KPP-N10ZB | STRIPE, L. MIDDLE COWL *TYPE1* | 1 | |
| 11 | 86644-KPP-N10ZC | STRIPE, L. MIDDLE COWL *TYPE2* | 1 | |
| 12 | 86831-KPP-T00ZA | MARK, HONDA *TYPE1* | 1 | |
| 13 | 86832-KPP-N00ZA | MARK(150R)*TYPE1* | 2 | |
| 13 | 86832-KPP-N20ZA | MARK(150R) *TYPE1* | 2 | |
| 14 | 86832-KPP-N10ZA | MARK(150R)*TYPE2* | 2 | |
| 14 | 86832-KPP-N10ZB | MARK(150R)*TYPE1* | 2 | |
