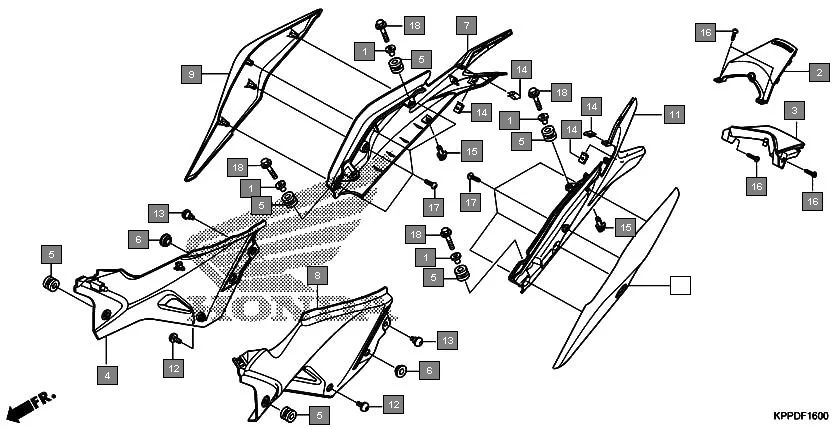

F-16 - SIDE COVER
HONDA CBR150R CBR150RC · 24 parts
Parts in This Assembly (24)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 19052-KV0-000 | COLLAR, RADIATOR MTG | 4 | |
| 2 | 83450-KPP-T00ZA | COWL SET, RR. CENTER UPPER(WL) *TYPE1* | 1 | |
| 3 | 83501-KPP-T00 | COWL, RR. CENTER LOWER | 1 | |
| 4 | 83510-KPP-T00 | COVER, R. SIDE | 1 | |
| 5 | 83545-KCJ-690 | RUBBER, SIDE COVER | 6 | |
| 6 | 83551-GE2-000 | GROMMET, AIR CLENER CASE | 2 | |
| 7 | 83600-KYJ-710 | COWL, R. RR. | 1 | |
| 8 | 83610-KPP-T00 | COVER, L. SIDE | 1 | |
| 9 | 83620-KPP-N10ZA | COVER SET, R. RR.(WL)*TYPE2* | 1 | |
| 9 | 83620-KPP-N10ZB | COVER SET, R. RR.(WL)*TYPE1* | 1 | |
| 9 | 83620-KPP-N00ZA | COVER SET, R. RR.(WL)*TYPE1* | 1 | |
| 10 | 83630-KPP-N10ZA | COVER SET, L. RR.(WL) *TYPE2* | 1 | |
| 10 | 83630-KPP-N10ZB | COVER SET, L. RR.(WL) *TYPE1* | 1 | |
| 10 | 83630-KPP-N00ZA | COVER SET, L. RR.(WL) *TYPE1* | 1 | |
| 11 | 83700-KYJ-710 | COWL, L. RR. | 1 | |
| 12 | 90132-KPP-T00 | SCREW, PAN, 6X10 | 2 | |
| 13 | 90133-KPP-T00 | SCREW, PAN, 6X14 | 2 | |
| 14 | 90344-KTE-910 | NUT, CLIP, 4MM | 4 | |
| 15 | 90683-GAZ-003 | CLIP, TRIM | 2 | |
| 15 | 90683-KPP-N00 | CLIP, TRIM | 1 | |
| 16 | 93903-24380 | SCREW TAPPING, 4 X 12 | 4 | |
| 17 | 93903-25280 | SCREW, TAPPING 5X12 | 8 | |
| 18 | 95701-06020-08 | BOLT, FLANGE, 6X20 | 4 | |
| 18 | 95702-06020-08 | BOLT, FLANGE, 6X20 | 4 | |
