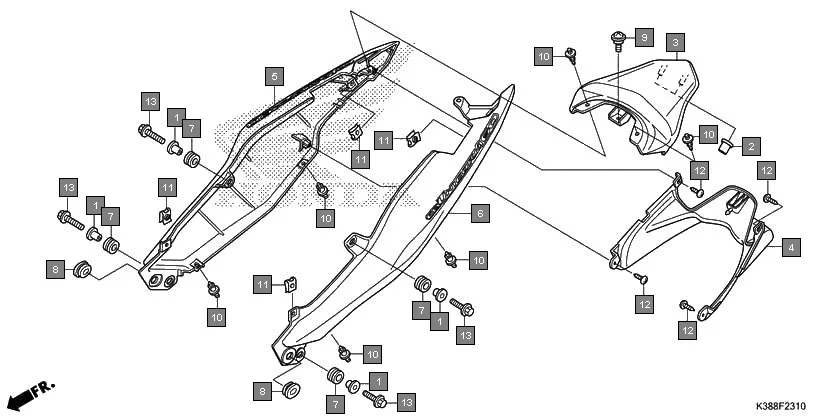

F-23-10-REAR COWL
HONDACB Unicorn 160 CBF160H · 23 parts
Parts in This Assembly (23)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17232-KYJ-900 | COLLAR, AIR CLEANER MOUNTING | 4 | |
| 2 | 33706-K38-900 | GROMMET, TAILLIGHT | 2 | |
| 3 | 77235-K38-900ZA | COWL SET, RR. CENTER(WL) *R355M* IMPERIAL RED METALLIC | 1 | |
| 3 | 77235-K38-900ZB | COWL SET, RR. CENTER(WL) *NHB05P* PEARL IGNEOUS BLACK | 1 | |
| 3 | 77235-K38-900ZD | COWL SET, RR. CENTER(WL) *NHA04M* GENY GRAY METALLIC | 1 | |
| 3 | 77235-K38-900ZE | COWL SET, RR. CENTER(WL) *NHB63P* PEARL AMAZING WHITE | 1 | |
| 4 | 77240-K38-900 | COWL, CENTER LOWER | 1 | |
| 5 | 77270-K38-900ZA | COWL SET, R. RR.(WL)*TYPE4* | 1 | |
| 5 | 77270-K38-900ZB | COWL SET, R. RR.(WL)*TYPE3* | 1 | |
| 5 | 77270-K38-900ZC | COWL SET, R. RR.(WL)*TYPE2* | 1 | |
| 5 | 77270-K38-900ZD | COWL SET, R. RR.(WL)*TYPE1* | 1 | |
| 6 | 77280-K38-900ZA | COWL SET, L. RR.(WL)*TYPE4* | 1 | |
| 6 | 77280-K38-900ZB | COWL SET, L. RR.(WL)*TYPE3* | 1 | |
| 6 | 77280-K38-900ZC | COWL SET, L. RR.(WL)*TYPE2* | 1 | |
| 6 | 77280-K38-900ZD | COWL SET, L. RR.(WL)*TYPE1* | 1 | |
| 7 | 83545-KCJ-690 | RUBBER, SIDE COVER | 4 | |
| 8 | 83551-GE2-000 | GROMMET, AIR CLENER CASE | 2 | |
| 9 | 90101-GE0-000 | SCREW, HINGE PATCH | 1 | |
| 10 | 90116-SP0-003 | CLIP, BUMPER SEAL | 6 | |
| 11 | 90320-KTE-600 | NUT, SPRING, 5MM | 4 | |
| 12 | 93903-24380 | SCREW TAPPING, 4 X 12 | 4 | |
| 13 | 95701-06020-00 | BOLT, FLANGE, 6X20 | 4 | |
| 13 | 95702-06020-00 | BOLT, FLANGE, 6X20 | 4 |
