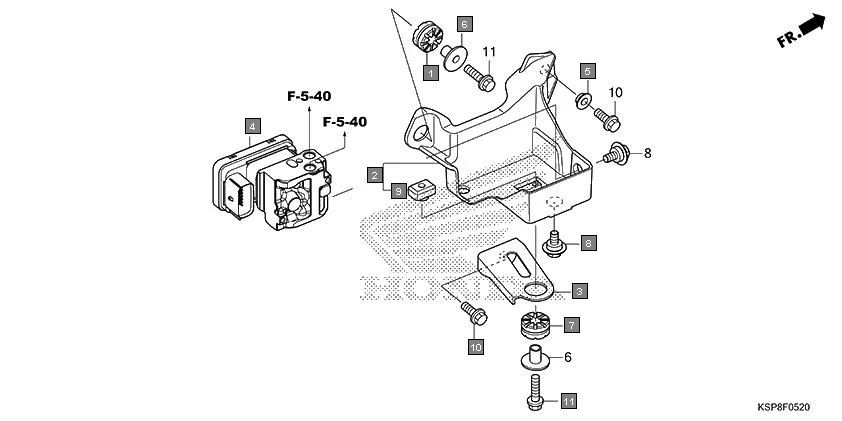

F-5-20 - ABS MODULATOR
HONDA CB Unicorn CBF150MK · 13 parts
Parts in This Assembly (13)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33705-KW7-900 | RUBBER A TAIL LIGHT MOUNT | 1 | |
| 2 | 50345-KSP-D20 | BOX, ABS MODULATOR | 1 | |
| 2 | 50345-KSP-D40 | BOX, ABS MODULATOR | 1 | |
| 3 | 50346-KSP-D20 | STAY, ABS MODULATOR(C) | 1 | |
| 4 | 57110-KSP-D21 | MODULATOR ASSY. | 1 | |
| 4 | 57110-KSP-D41 | MODULATOR ASSY. | 1 | |
| 5 | 61101-K55-600 | COLLAR, FR. FENDER SETTING | 1 | |
| 6 | 61102-KTY-D30 | COLLAR, RADIATOR MOUNTING | 2 | |
| 7 | 77208-KW7-900 | RUBBER B, SEAT MOUNTING | 1 | |
| 8 | 90111-K98-E00 | BOLT, FLANGE, 6MM | 2 | |
| 9 | 90304-K23-900 | NUT(6MM) | 1 | |
| 10 | 95701-06016-00 | BOLT, FLANGE, 6X16 | 2 | |
| 11 | 95701-06022-00 | BOLT, FLANGE, SH. 6 X 22 | 2 | |
