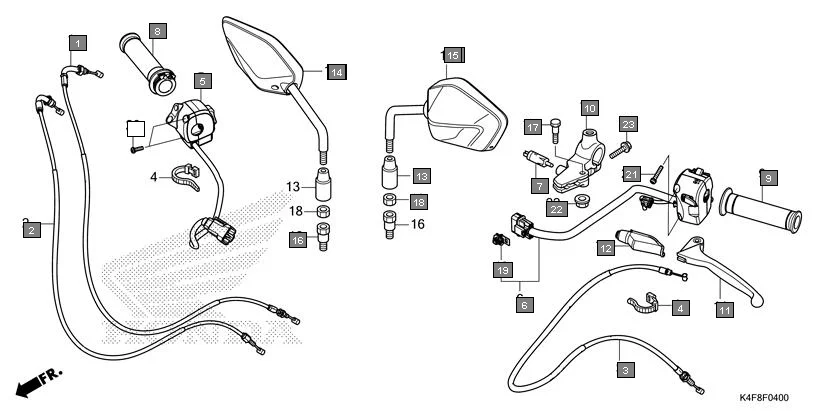

F-4-HANDLE LEVER/SWITCH/CABLE/MIRROR
HONDACB125 Hornet CBF125ZT · 25 parts
Parts in This Assembly (25)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17910-K4F-D01 | CABLE COMP. A, THROTTLE | 1 | |
| 2 | 17920-K4F-D01 | CABLE COMP. B, THROTTLE | 1 | |
| 3 | 22870-K4F-D01 | CABLE COMP., CLUTCH | 1 | |
| 4 | 32161-KSP-920 | BAND B1, WIRE | 2 | |
| 5 | 35130-K4F-D01 | SWITCH ASSY., STARTER & ENGINE STOP | 1 | |
| 6 | 35200-K4F-D01 | SWITCH ASSY., WINKER | 1 | |
| 7 | 35330-KYJ-611 | SWITCH ASSY., CLUTCH | 1 | |
| 8 | 53140-K0N-D00 | GRIP COMP., THROTTLE | 1 | |
| 9 | 53166-K0Z-J00 | GRIP, L. HANDLE | 1 | |
| 10 | 53172-KTE-930 | BRKT L HNDL LEVER | 1 | |
| 11 | 53178-K0N-D00 | LEVER COMP., L. HANDLE | 1 | |
| 12 | 53179-KTC-900 | COVER L HANDLE LEVER | 1 | |
| 13 | 88114-K0N-D80 | CAP, LOCK NUT | 2 | |
| 14 | 88210-K4F-601ZA | MIRROR COMP., R.(SANDHAR) *NH1* BLACK | 1 | |
| 14 | 88210-K4F-D01ZA | MIRROR COMP., R.(FIEM) *NH1* BLACK | 1 | |
| 15 | 88220-K4F-601ZA | MIRROR COMP., L.(SANDHAR) *NH1* BLACK | 1 | |
| 15 | 88220-K4F-D01ZA | MIRROR COMP., L.(FIEM) *NH1* BLACK | 1 | |
| 16 | 90103-K38-940 | BOLT, ADAPTER, 10MM | 2 | |
| 17 | 90114-428-870 | BOLT,HANDLE LEVER PIVOT | 1 | |
| 18 | 90201-MW3-620 | NUT, HEX., 10MM | 2 | |
| 19 | 90651-K2T-V01 | CLIP, COUPLER(DARK BROWN) | 1 | |
| 20 | 93892-05016-07 | SCREW-WASHER, 5X16 | 2 | |
| 21 | 93892-05025-07 | SCREW, WASHER, 5X25 | 2 | |
| 22 | 94050-06000 | NUT, FLANGE, 6 MM | 1 | |
| 23 | 96001-06025-07 | BOLT, FLANGE, SH. 6 X 25 | 1 |
