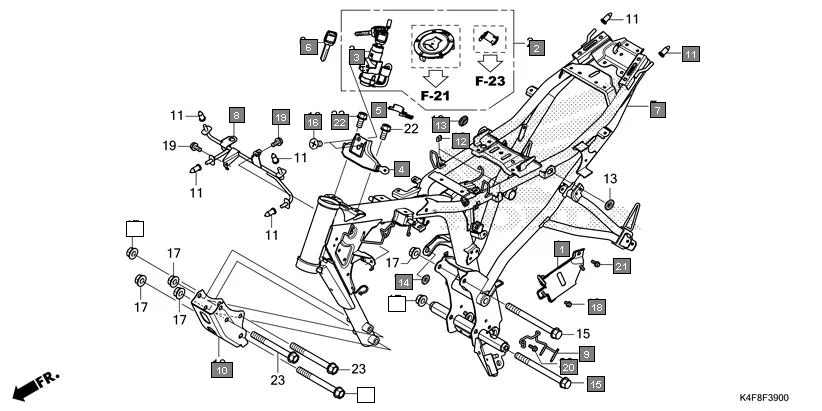

F-39-FRAME BODY
HONDACB125 Hornet CBF125ZT · 23 parts
Parts in This Assembly (23)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 30450-K4F-D00 | STAY, ECU MOUNT | 1 | |
| 2 | 35010-K1L-D02 | KEY SET | 1 | |
| 3 | 35100-K1L-D02 | SWITCH ASSY., COMBINATION & LOCK | 1 | |
| 4 | 35105-K1L-D00 | STAY COMP., COMBINATION SWITCH | 1 | |
| 5 | 35106-K1L-D00 | HOLDER, CONNECTOR | 1 | |
| 6 | 35121-KPP-N01 | KEY, BLANK | 1 | |
| 7 | 50100-K4F-D00 | BODY COMP., FRAME | 1 | |
| 8 | 50295-K4F-D00 | STAY COMP., SHROUD | 1 | |
| 9 | 50297-K4F-D00 | GUIDE, DRAIN TUBE | 1 | |
| 10 | 50351-K4F-D00 | PLATE, FR. ENGINE HANGER | 1 | |
| 11 | 61312-KCT-690 | BOOT, HEAD LIGHT STAY | 6 | |
| 12 | 77267-K2P-V60 | RUBBER, COWL | 2 | |
| 13 | 83551-300-000 | GROMMET, AIR CLEANER CASE | 2 | |
| 14 | 83551-376-000 | GROMMET, SIDE COVER | 1 | |
| 15 | 90130-KPM-000 | BOLT, FLANGE, 10X100 | 2 | |
| 16 | 90164-KPL-900 | SCREW, FLAT, U LOCK, 6X12 | 2 | |
| 17 | 94050-10080 | NUT, FLANGE, 10MM | 6 | |
| 18 | 95701-06010-08 | BOLT, FLANGE, 6X10 | 1 | |
| 19 | 95701-06012-07 | BOLT, FLANGE, 6X12 | 2 | |
| 20 | 95701-06016-07 | BOLT, FLANGE, 6 X 16 | 1 | |
| 21 | 95701-06016-08 | BOLT, FLANGE, 6X16 | 1 | |
| 22 | 95701-08016-08 | BOLT, FLANGE, 8X16 | 2 | |
| 23 | 95801-10090-08 | BOLT, FLANGE, 10X90 | 4 |
