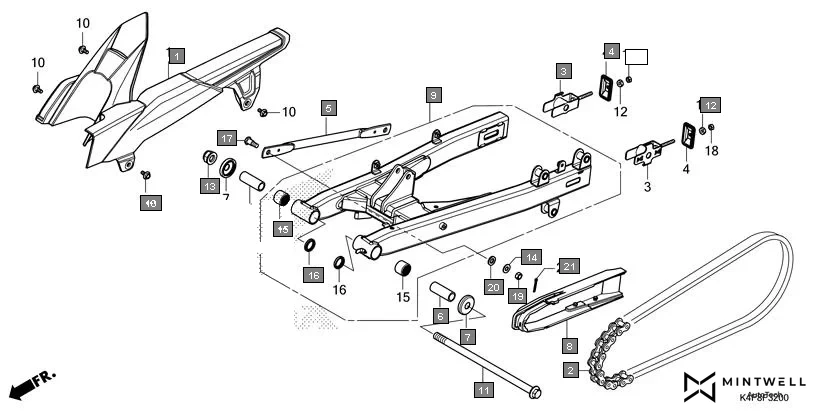

F-32-SWINGARM
HONDACB125 Hornet CBF125ZT · 21 parts
Parts in This Assembly (21)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 40511-K4F-D00 | CASE, DRIVE CHAIN | 1 | |
| 2 | 40530-K4F-D01 | CHAIN, DRIVE(LGB) (R420OR-126LE) | 1 | |
| 3 | 40543-K4F-D00 | ADJUSTER COMP., CHAIN | 2 | |
| 4 | 40546-K38-940 | CAP, RR. FORK END | 2 | |
| 5 | 43431-KTE-910 | ARM, RR. BRAKE STOPPER | 1 | |
| 6 | 52141-KSP-900 | COLLAR, SWINGARM PIVOT | 2 | |
| 7 | 52144-GC4-003 | DUST SEAL, 31X40.5X7.1(ARAI) | 2 | |
| 8 | 52170-K4F-D00 | SLIDER, CHAIN | 1 | |
| 9 | 52200-K4F-D00 | SWINGARM SUB ASSY., RR. | 1 | |
| 10 | 90111-187-000 | BOLT, FLANGE. 6 MM | 4 | |
| 11 | 90121-K45-GM0 | BOLT, SWINGARM PIVOT | 1 | |
| 12 | 90302-KBP-900 | NUT SPL 6 MM | 2 | |
| 13 | 90305-KVN-901 | NUT, FLANGE, 14MM (SIMMONDS MARSHALL) | 1 | |
| 14 | 90551-K0N-D00 | WASHER, PLAIN, 8MM | 1 | |
| 15 | 91071-KSP-901 | BEARING, NEEDLE, 20X26X20 | 2 | |
| 16 | 91254-KS6-003 | DUST SEAL 20 X 26 X 4.5 | 2 | |
| 17 | 92812-10000 | BOLT A BRAKE STOPPER ARM | 1 | |
| 18 | 94001-06080-0S | NUT, HEX., 6MM | 2 | |
| 19 | 94001-08080-0S | NUT, HEX., 8MM | 1 | |
| 20 | 94111-10800 | WASHER, SPRING, 10MM | 1 | |
| 21 | 94201-20150 | PIN, SPLIT, 2.0 X 15 | 1 |
