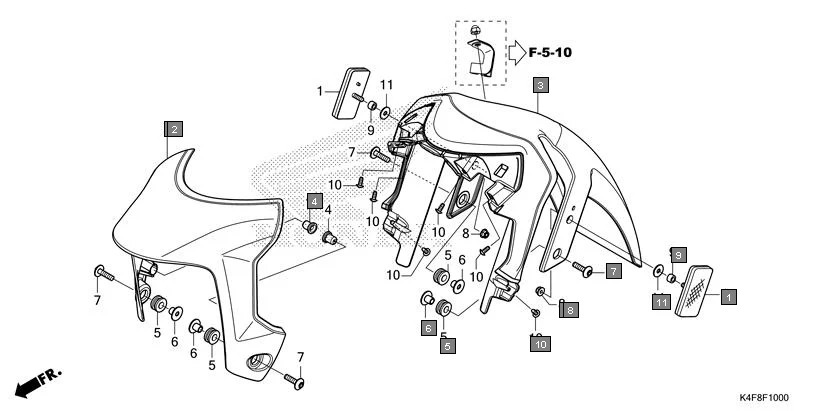

F-10-FRONT FENDER
HONDACB125 Hornet CBF125ZT · 13 parts
Parts in This Assembly (13)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33740-KZK-951 | REFLECTOR, FR. SIDE REFLEX | 2 | |
| 2 | 61000-K4F-D00ZA | FENDER SET A, FR.(WL) *TYPE2* | 1 | |
| 2 | 61000-K4F-D00ZB | FENDER SET A, FR.(WL) *TYPE1* | 1 | |
| 3 | 61120-K4F-D00 | FENDER ASSY. B, FR. | 1 | |
| 4 | 61312-149-300 | BOOT, HEADLIGHT BRACKET | 2 | |
| 5 | 80101-165-000 | RUBBER, RR. FENDER CUSHION | 4 | |
| 6 | 84706-163-670 | COLLAR TAIL LIGHT MTG | 4 | |
| 7 | 90130-KYJ-900 | SCREW, PAN, 6X22 | 4 | |
| 8 | 90301-KWN-901 | NUT, U, 5MM(FUJI SEIMITSU)..... | 2 | |
| 8 | 90301-K0P-D91 | NUT, FLANGE, 5MM(PT) (SIMMONDS MARSHALL) | 2 | |
| 9 | 90312-KZK-950 | COLLAR, 9.5X5.5 | 2 | |
| 10 | 93903-24280 | SCREW, TAPPING, 4X10 | 6 | |
| 11 | 94103-05800 | WASHER,PLAIN, 5.5MM | 2 |
