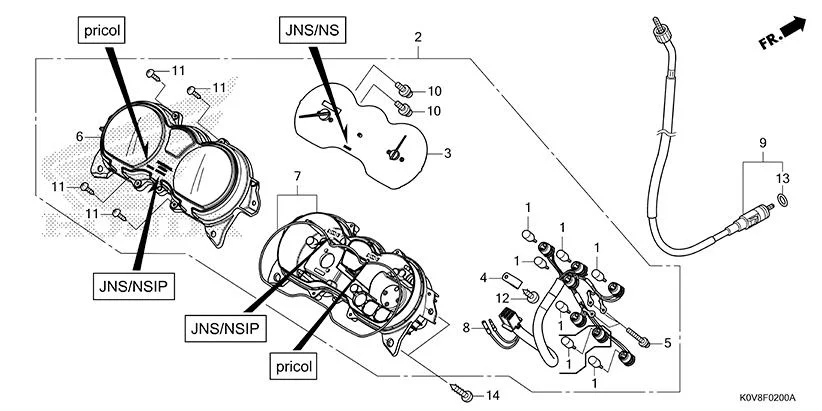

F-2-METER(1)
HONDACB Shine/ Shine 125 CBF125S · 15 parts
Parts in This Assembly (15)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34908-KVE-900 | BULB, WEDGE BASE T10 (12V - 1.7 W) | 7 | |
| 1 | 34910-KWA-930 | BULB WEDGE BASE (T10 12V, 1.7W) | 7 | |
| 2 | 37100-K0V-B01 | METER ASSY., COMBINATION(KPH) (PRICOL) | 1 | |
| 3 | 37210-K0V-B01 | METER COMP., SPEED & FUEL (PRICOL) | 1 | |
| 4 | 37215-KTE-D02 | CLAMP(PRICOL) | 1 | |
| 5 | 90105-K0V-B01 | SCREW-WASHER, 3X40 (PRICOL) | 3 | |
| 6 | 37310-K0V-B01 | LENS ASSY.(PRICOL) | 1 | |
| 7 | 37610-K0V-B01 | CASE ASSY., UNDER(PRICOL) | 1 | |
| 8 | 37619-K0V-B01 | SOCKET COMP.(PRICOL) | 1 | |
| 9 | 44830-K14-901 | CABLE COMP., SPEEDOMETER | 1 | |
| 10 | 90101-KTE-D02 | SCREW-WASHER, SPECIAL(PRICOL) | 2 | |
| 11 | 90104-KTE-D02 | SCREW, TAPPING, 3X14 | 4 | |
| 12 | 90103-KTE-D02 | SCREW, TAPPING, 4X14 | 1 | |
| 13 | 91256-KK3-840 | O-RING, 10X1.5 | 1 | |
| 14 | 93903-35310 | SCREW TAPPING 5X16 | 4 |
