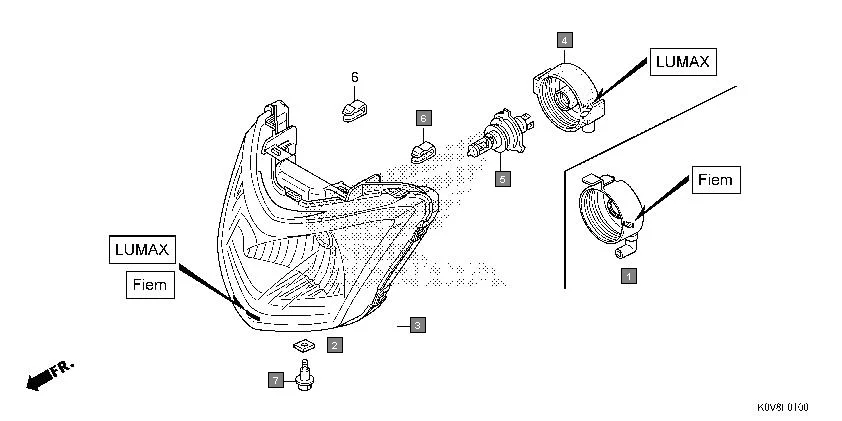

F-1-HEADLIGHT
HONDACB Shine/ Shine 125 CBF125P · 10 parts
Parts in This Assembly (10)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33112-K14-601 | COVER, RUBBER | 1 | |
| 2 | 33128-GBL-003 | NUT, SPECIAL | 1 | |
| 2 | 33115-KTE-D01 | NUT, SPECIAL(FIEM) | 1 | |
| 3 | 33120-K0V-A01 | HEADLIGHT UNIT(FIEM) | 1 | |
| 3 | 33120-K0V-B01 | HEADLIGHT UNIT(LUMAX) | 1 | |
| 4 | 33126-KWP-F01 | COVER, RUBBER(LUMAX) | 1 | |
| 5 | 34901-KVN-971 | BULB HEAD LIGHT | 1 | |
| 5 | 34901-KTE-D01 | BULB, HEADLIGHT(12V 35/35W) (OSRAM) | 1 | |
| 6 | 53209-GAH-000 | CLIP, HEADLIGHT | 2 | |
| 7 | 90101-KTE-650 | BOLT, ADJUSTING | 1 |
