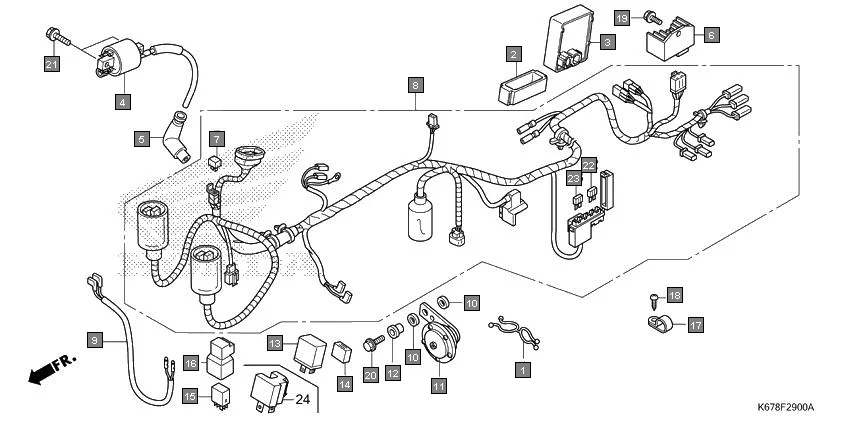

F-29 - WIRE HARNESS
HONDA CB Shine SP CBF125MG · 26 parts
Parts in This Assembly (26)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17354-PE0-003 | CLAMP C, AIR TUBE | 1 | |
| 2 | 30401-KWP-D21 | CUSHION, C.D.I. UNIT (SHINDENGEN) | 1 | |
| 3 | 30410-K67-901 | C.D.I. UNIT COMP., DIGITAL(DC) | 1 | |
| 4 | 30500-KTE-601 | COIL ASSY., IGNITION(ANU) | 1 | |
| 5 | 30700-KTE-601 | CAP ASSY., NOISE SUPPRESSOR(ANU) | 1 | |
| 6 | 31600-K67-901 | RECTIFIER COMP., REGULATOR | 1 | |
| 7 | 31700-124-008 | RECTIFIER ASSY., SILICON(SHINDENGEN) | 1 | |
| 8 | 32100-K67-901 | HARNESS, WIRE | 1 | |
| 8 | 32100-K67-900 | HARNESS, WIRE | 1 | |
| 9 | 32102-KTE-600 | SUB CORD | 1 | |
| 10 | 33714-KL3-620 | RUBBER, TAIL LIGHT | 2 | |
| 11 | 38110-KWF-952 | HORN COMP | 1 | |
| 12 | 38117-KFE-701 | COLLAR, HORN SET | 1 | |
| 13 | 38301-K14-962 | RELAY COMP., WINKER (STAR ENGINEERS) | 1 | |
| 14 | 38306-K38-901 | SUSPENSION, WINKER RELAY (STAR ENGINEERS) | 1 | |
| 15 | 38502-KWA-931 | RELAY COMP., POWER (MICRO ISO 5P)(MULTILINK) | 1 | |
| 16 | 38506-KSP-910 | SUS., POWER RELAY | 1 | |
| 17 | 90672-KTE-650 | CLIP(17) | 1 | |
| 18 | 93903-24320 | SCREW, TAPPING, 4X12 | 1 | |
| 19 | 95701-06014-00 | BOLT, FLANGE, 6 X 14 | 1 | |
| 19 | 95702-06014-00 | BOLT, FLANGE, 6X14 | 1 | |
| 20 | 95701-06020-08 | BOLT, FLANGE, 6X20 | 1 | |
| 20 | 95702-06020-08 | BOLT, FLANGE, 6X20 | 1 | |
| 21 | 96001-06020-00 | BOLT, FLANGE, SH. 6 X 20 | 2 | |
| 22 | 98200-31000 | BLADE, FUSE 10A | 2 | |
| 23 | 98200-31500 | BLADE, FUSE, 15A | 2 | |
