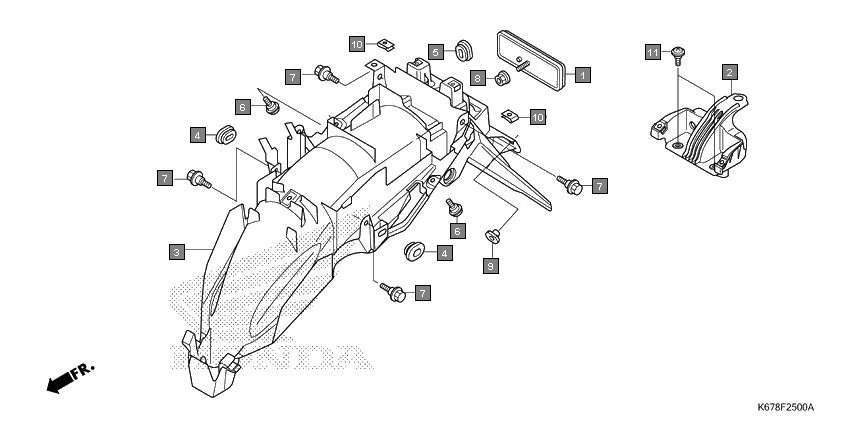

F-25 - REAR FENDER
HONDA CB Shine SP CBF125MG · 11 parts
Parts in This Assembly (11)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33741-KPL-902 | REFLECTOR, REFLEX | 1 | |
| 2 | 77235-K67-900 | STAY, TAILLIGHT | 1 | |
| 3 | 80101-K67-900 | FENDER, RR. | 1 | |
| 4 | 83551-GE2-000 | GROMMET, AIR CLENER CASE | 2 | |
| 5 | 83551-KWS-900 | GROMMET, TAILLIGHT | 1 | |
| 6 | 90101-GE0-000 | SCREW, HINGE PATCH | 2 | |
| 7 | 90111-162-000 | BOLT, FLANGE, 6MM | 4 | |
| 8 | 90301-KWN-901 | NUT, U, 5MM(FUJI SEIMITSU)..... | 1 | |
| 9 | 90311-KTE-910 | NUT REAR FENDER | 2 | |
| 10 | 90320-GC3-000 | NUT, SPRING, M5 | 2 | |
| 11 | 91509-GE2-760 | SCREW, WASHER, 5 X 11.5 | 2 | |
