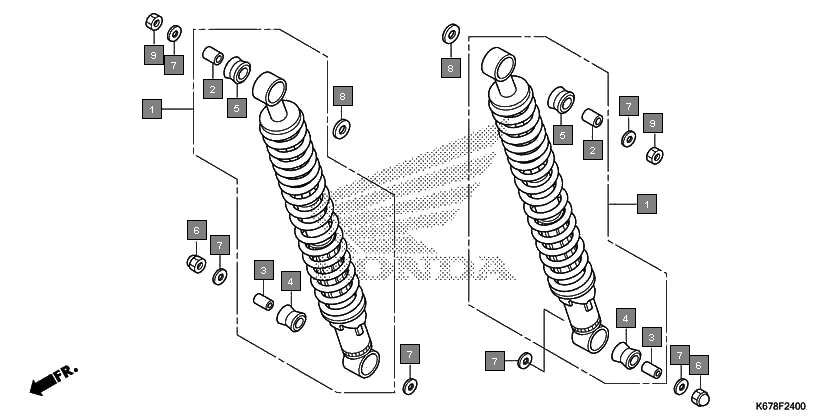

F-24 - REAR CUSHION
HONDA CB Shine SP CBF125MG · 9 parts
Parts in This Assembly (9)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 52400-K67-901 | CUSHION ASSY., RR.(GABRIEL) | 2 | |
| 2 | 52486-KWS-901 | COLLAR, RUBBER BUSH(GABRIEL) | 2 | |
| 3 | 52487-K67-901 | COLLAR, RUBBER BUSH(GABRIEL) | 2 | |
| 4 | 52489-K67-901 | RUBBER, BUSH(GABRIEL) | 2 | |
| 5 | 52489-KWS-901 | BUSH, RUBBER(GABRIEL) | 2 | |
| 6 | 90305-K67-900 | NUT, CAP, 10MM | 2 | |
| 7 | 90551-KTE-910 | WASHER SPECIAL, 10 MM | 6 | |
| 8 | 90661-K67-900 | WASHER, SPECIAL, 12MM | 2 | |
| 9 | 94030-10000 | NUT HEX., 10MM | 2 | |
