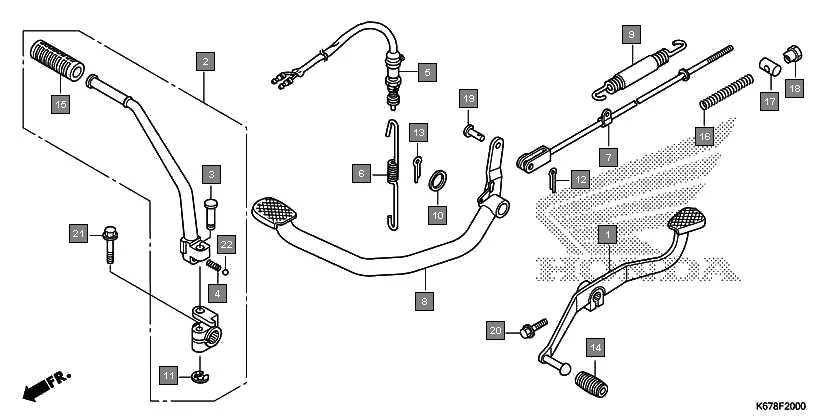

F-20 - PEDAL/KICK STARTER ARM(ID,2ID)
HONDA CB Shine SP CBF125MG · 22 parts
Parts in This Assembly (22)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 24701-KTE-910 | PEDAL, GEAR CHANGE | 1 | |
| 2 | 28300-KTE-650 | ARM ASSY., KICK STARTER | 1 | |
| 3 | 28321-KTE-910 | PIN, KICK STARTER | 1 | |
| 4 | 28333-KAN-T40 | SPG KICK STARTER | 1 | |
| 5 | 35350-KTE-651 | SWITCH ASSY., RR. STOP | 1 | |
| 6 | 35357-KTE-650 | SPRING, STOP SWITCH | 1 | |
| 7 | 43451-KTE-910 | ROD COMP., RR. BRAKE | 1 | |
| 8 | 46500-KTE-650 | PEDAL COMP., BRAKE | 1 | |
| 9 | 46510-KSP-900 | SPRING SET, BRAKE PEDAL | 1 | |
| 10 | 90521-028-000 | WASHER, 17X22 | 1 | |
| 11 | 90601-473-003 | E RING 8MM | 1 | |
| 12 | 94201-20120 | PIN, SPLIT, 2.0X12 | 1 | |
| 13 | 94201-30300 | PIN, SPLIT 3 X 30MM | 1 | |
| 14 | 95011-40000 | RUBBER, CHANGE PEDAL | 1 | |
| 15 | 95011-51000 | RUBBER, A KICK STARTER | 1 | |
| 16 | 95014-73100 | SPRING A BRAKE ROD | 1 | |
| 17 | 95015-32001 | JOINT B BRAKE ARM | 1 | |
| 18 | 95015-42000 | NUT B ADJUST | 1 | |
| 19 | 95015-53000 | PIN, C JOINT | 1 | |
| 20 | 95701-06020-00 | BOLT, FLANGE, 6X20 | 1 | |
| 21 | 95701-08025-00 | BOLT, FLANGE 8 X 25 | 1 | |
| 22 | 96211-08000 | BALL STEEL 8 MM | 1 | |
