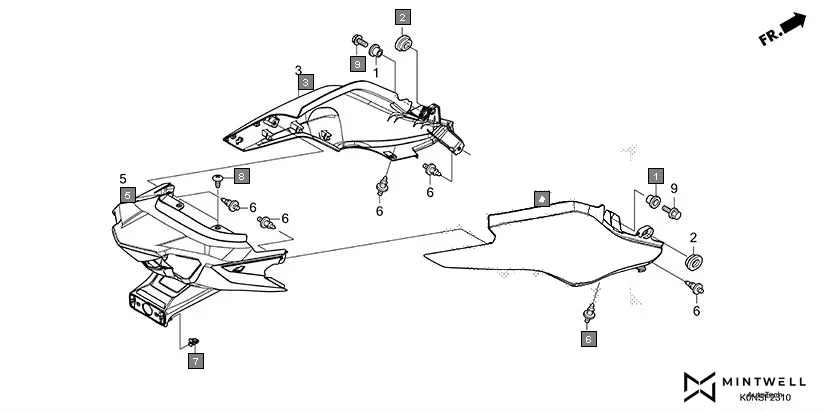

F-23-10-REAR COWL
HONDASP125 CBF125MEFT · 17 parts
Parts in This Assembly (17)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 61101-K55-600 | COLLAR, FR. FENDER SETTING | 2 | |
| 2 | 64413-KSS-C00 | GROMMET, BODY COVER | 2 | |
| 3 | 77260-K0N-DU0ZA | COWL SET, R. RR.(WL) *TYPE4* | 1 | |
| 3 | 77260-K0N-DU0ZB | COWL SET, R. RR.(WL)*TYPE3* | 1 | |
| 3 | 77260-K0N-DU0ZC | COWL SET, R. RR.(WL)*TYPE2* | 1 | |
| 3 | 77260-K0N-DU0ZD | COWL SET, R. RR.(WL)*TYPE1* | 1 | |
| 3 | 77261-K0N-DU0ZA | COWL, R. RR.(WOL)*NH303M*MAT AXIS GRAY METALLIC | 1 | |
| 4 | 77270-K0N-DU0ZA | COWL SET, L. RR.(WL) *TYPE4* | 1 | |
| 4 | 77270-K0N-DU0ZB | COWL SET, L. RR.(WL)*TYPE3* | 1 | |
| 4 | 77270-K0N-DU0ZC | COWL SET, L. RR.(WL)*TYPE2* | 1 | |
| 4 | 77270-K0N-DU0ZD | COWL SET, L. RR.(WL)*TYPE1* | 1 | |
| 4 | 77271-K0N-DU0ZA | COWL, L. RR.(WOL) *NH303M*MAT AXIS GRAY METALLIC | 1 | |
| 5 | 77280-K0N-DU0ZA | COWL SET, RR. CENTER(WL) *TYPE1* | 1 | |
| 6 | 90116-K3V-N01 | RIVET, PUSH, 6MM | 6 | |
| 7 | 90666-K59-A11 | CLIP, SNAP FITTING(PO) | 2 | |
| 8 | 93903-25220 | SCREW, TAPPING, 5X12 | 2 | |
| 9 | 95701-06014-08 | BOLT FLANGE 6X14 | 2 |
