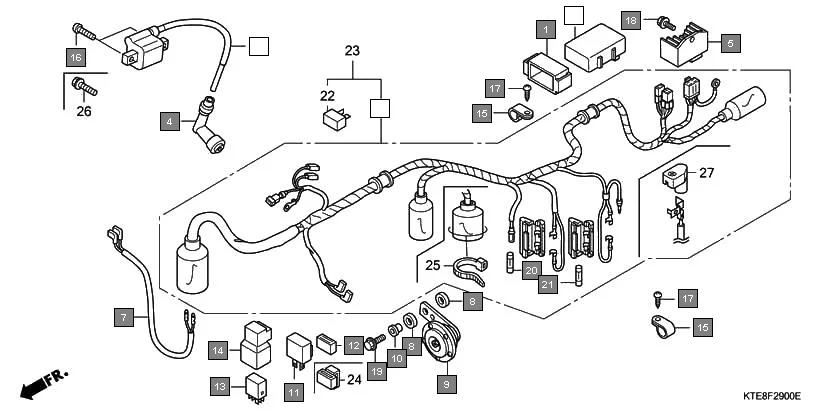

F-29 - WIRE HARNESS(CARBURETOR)
HONDA CB Shine/ Shine 125 CBF125CA · 21 parts
Parts in This Assembly (21)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 30401-KTE-910 | CUSHION, C.D.I. UNIT | 1 | |
| 2 | 30410-KTE-911 | C.D.I. UNIT | 1 | |
| 3 | 30500-KTE-910 | COIL COMP., IGNITION | 1 | |
| 4 | 30700-KSP-910 | CAP ASSY., NOISE SUPPRESSOR | 1 | |
| 5 | 31600-KSP-911 | RECTIFIER COMP., REGULATOR | 1 | |
| 6 | 32100-KTE-911 | HARNESS, WIRE | 1 | |
| 7 | 32102-KCC-840 | SUB CORD | 1 | |
| 8 | 33714-KL3-620 | RUBBER, TAIL LIGHT | 2 | |
| 9 | 38110-KTE-910 | HORN COMP.(HIGH) | 1 | |
| 10 | 38117-KFE-701 | COLLAR, HORN SET | 1 | |
| 11 | 38301-KPL-901 | RELAY COMP., WINKER | 1 | |
| 12 | 38306-KTE-910 | SUSPENSION, WINKER RELAY | 1 | |
| 13 | 38502-KSP-910 | RELAY COMP., POWER (MICRO ISO 5P) | 1 | |
| 14 | 38506-KSP-910 | SUS., POWER RELAY | 1 | |
| 15 | 90628-750-000 | CLIP(14MM) | 2 | |
| 16 | 93500-06020-0H | SCREW, PAN, 6X20 | 2 | |
| 17 | 93903-24320 | SCREW, TAPPING, 4X12 | 2 | |
| 18 | 95701-06012-00 | BOLT, FLANGE, 6X12 | 1 | |
| 19 | 95701-06020-08 | BOLT, FLANGE, 6X20 | 1 | |
| 20 | 98200-11000 | FUSE, A10 | 2 | |
| 21 | 98200-11500 | FUSE(15A) | 2 | |
