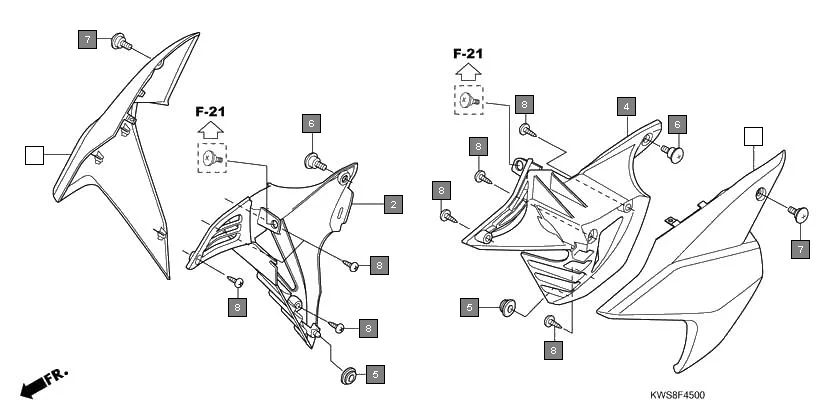

F-45-SIDE COWL
HONDACB Twister CBF110MSE · 20 parts
Parts in This Assembly (20)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 50260-KWS-900ZK | COWL, R. SIDE *Y210M* ELECTRIC YELLOW METALLIC | 1 | |
| 1 | 50260-KWS-900ZF | COWL, R. SIDE *R320P* PEARL SIENA RED | 1 | |
| 1 | 50260-KWS-900ZH | COWL, R. SIDE *GY142C* CANDY PALM GREEN | 1 | |
| 1 | 50260-KWS-900ZC | COWL, R. SIDE *B202P* PEARL FIJI BLUE | 1 | |
| 1 | 50200-KWS-930ZC | COWL SET, R. SIDE(WL) *TYPE1* | 1 | |
| 1 | 50200-KWS-930ZD | COWL SET, R. SIDE(WL) *TYPE2* | 1 | |
| 1 | 50260-KWS-900ZE | COWL, R. SIDE *NHA84P* PEARL NIGHTSTAR BLACK | 1 | |
| 2 | 50265-KWS-900 | COWL, R. SIDE INNER | 1 | |
| 3 | 50270-KWS-900ZK | COWL, L. SIDE *Y210M* ELECTRIC YELLOW METALLIC | 1 | |
| 3 | 50270-KWS-900ZD | COWL, L. SIDE *R320P* PEARL SIENA RED | 1 | |
| 3 | 50270-KWS-900ZH | COWL, L. SIDE *GY142C* CANDY PALM GREEN | 1 | |
| 3 | 50270-KWS-900ZA | COWL, L. SIDE *B202P* PEARL FIJI BLUE | 1 | |
| 3 | 50300-KWS-930ZC | COWL SET, L. SIDE(WL) *TYPE1* | 1 | |
| 3 | 50300-KWS-930ZD | COWL SET, L. SIDE(WL) *TYPE2 1* | 1 | |
| 3 | 50270-KWS-900ZC | COWL, L. SIDE *NHA84P* PEARL NIGHTSTAR BLACK | 1 | |
| 4 | 50275-KWS-900 | COWL, L. SIDE INNER | 1 | |
| 5 | 83551-300-000 | GROMMET, AIR CLEANER CASE | 2 | |
| 6 | 90102-KWS-900 | BOLT, FAIRING SETTING | 2 | |
| 7 | 90103-KWS-900 | BOLT, COWL SETTING | 2 | |
| 8 | 93903-34320 | SCREW, TAPPING, 4X12 | 8 |
