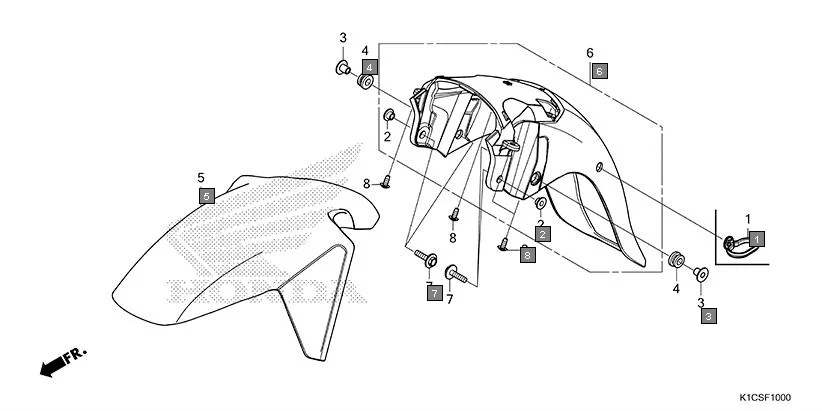

F-10-FRONT FENDER
HONDALivo CBF110BES · 10 parts
Parts in This Assembly (10)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 45451-KTE-600 | GUIDE, FR. FENDER CABLE | 1 | |
| 2 | 61101-K0N-D00 | COLLAR, 6.2X5 | 2 | |
| 3 | 61103-KRY-900 | COLLAR, A FR.FENDER | 2 | |
| 4 | 61105-KRY-900 | RUBBER, FR.FENDER MTG. | 2 | |
| 5 | 61111-K0N-DZ0ZB | FENDER A, FR.*PB123PA* PEARL SIREN BLUE-A | 1 | |
| 5 | 61111-K0N-DZ0ZD | FENDER A, FR.*NHB05P* PEARL IGNEOUS BLACK | 1 | |
| 5 | 61111-K0N-DZ0ZK | FENDER A, FR.*NHC41P* PEARL PRECIOUS WHITE | 1 | |
| 6 | 61112-K0N-DU0 | FENDER B, FR. | 1 | |
| 7 | 93404-06025-08 | BOLT, WASH, 6 X 25 | 4 | |
| 8 | 93903-25210 | SCREW, TAPPING, 5X12 | 4 |
