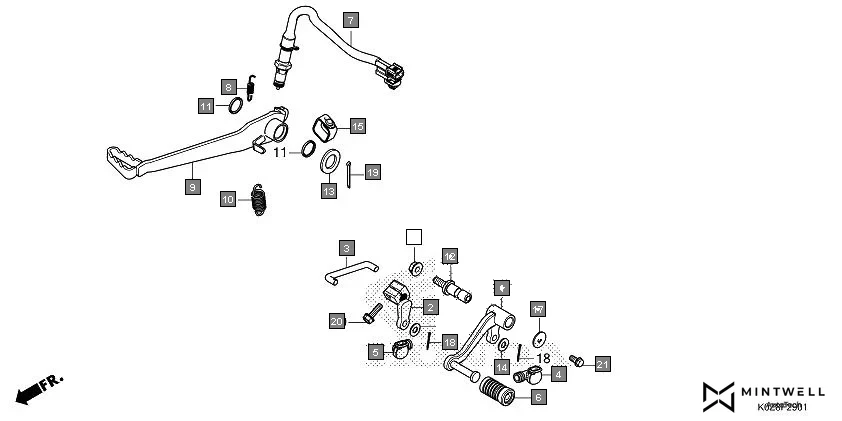

F-29-1-PEDAL(CB350RS)
HONDAHNESS CB350RSM · 21 parts
Parts in This Assembly (21)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 24701-K0Z-920 | PEDAL COMP., GEAR CHANGE | 1 | |
| 2 | 24711-K0Z-920 | ARM COMP., GEAR CHANGE | 1 | |
| 3 | 24720-K0Z-920 | ROD, TIE | 1 | |
| 4 | 24721-GS3-000 | COVER,CHANGE PEDAL | 1 | |
| 5 | 24721-K0Z-920 | COVER, CHANGE PEDAL | 1 | |
| 6 | 24781-KSP-860 | RUBBER, CHANGE PEDAL | 1 | |
| 7 | 35350-K0Z-921 | SWITCH ASSY., RR. STOP | 1 | |
| 8 | 35357-HP0-A00 | SPRING, STOP SWITCH | 1 | |
| 9 | 46500-K0Z-920 | PEDAL COMP., RR. BRAKE | 1 | |
| 10 | 46514-K0Z-920 | SPRING, BRAKE PEDAL | 1 | |
| 11 | 46525-KK0-003 | DUST SEAL, 17X20X2.5 | 2 | |
| 12 | 50643-KYJ-900 | PIVOT, CHANGE PEDAL | 1 | |
| 13 | 90501-K0Z-920 | WASHER, BUSH | 1 | |
| 14 | 90502-K43-900 | WASHER, PLAIN, 7MM | 2 | |
| 15 | 90652-K0Z-900 | BAND, RUBBER(60) | 1 | |
| 16 | 94050-08070 | NUT, FLANGE, 8MM | 1 | |
| 17 | 94103-06700 | WASHER, PLAIN, 6 MM | 1 | |
| 18 | 94201-20150 | PIN, SPLIT, 2.0 X 15 | 2 | |
| 19 | 94201-30280 | PIN, SPLIT, 3.0X28 | 1 | |
| 20 | 95701-06020-07 | BOLT, FLANGE, 6 X 20 | 1 | |
| 21 | 96001-06012-07 | BOLT, FLANGE, SH., 6 X 12 | 1 |
