OEM Part
OEM Part
17574-GHB-601
GASKET, FUEL PUMP
Qty Required: 1
Ref #9 in Assembly
Part of Assembly

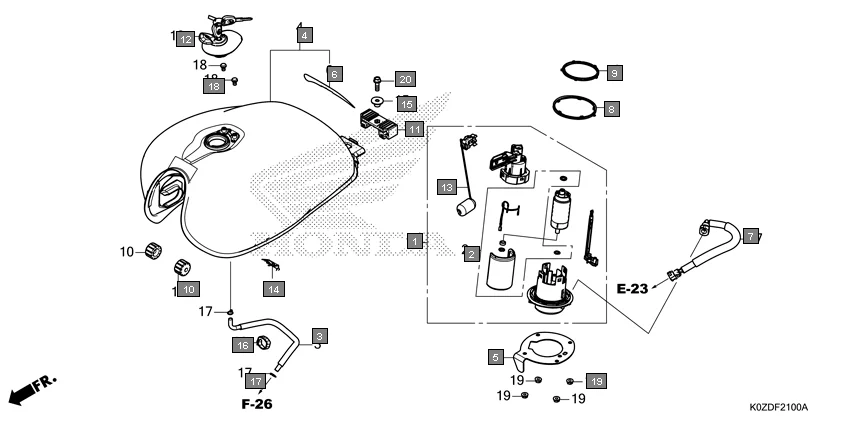

F-21
FUEL TANK/FUEL PUMP
21 parts in this assembly
Assembly Diagram
Ref #9
Supported Vehicles19
Related Parts
16700-K0Z-D01
PUMP ASSY., FUEL
16707-K94-T01
FILTER SET
17411-K0Z-900
TUBE, CHARGE
17500-K0Z-D00ZF
TANK ASSY., FUEL(WL) *NHC75P* PEARL DEEP GROUND GRAY
17500-K0Z-D00ZG
TANK ASSY., FUEL(WL)*NHB05P*PEARL IGNEOUS BLACK
17506-K0Z-900
PLATE, SETTING
