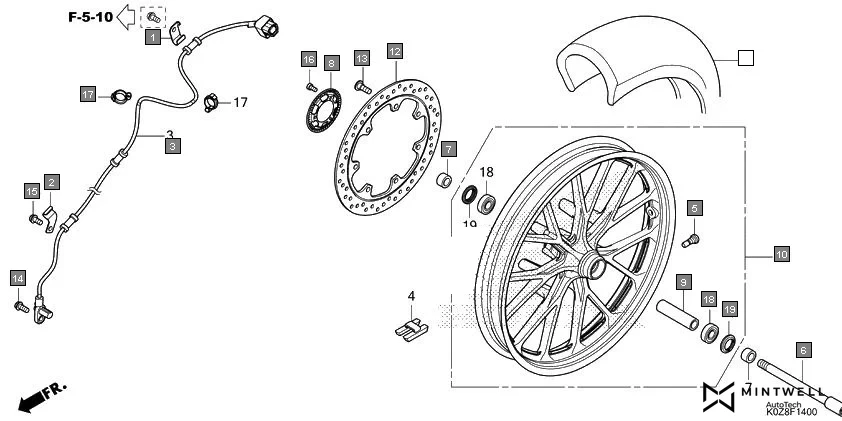

F-14-FRONT WHEEL
HONDAHNESS CB350DP · 20 parts
Parts in This Assembly (20)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 38515-K0Z-900 | CLAMPER, SENSOR CORD | 1 | |
| 2 | 38517-K0Z-900 | CLAMPER, FR. SENSOR CORD | 1 | |
| 3 | 38520-K0Z-921 | SENSOR, FR. WHEEL SPEED....... | 1 | |
| 5 | 42753-KWF-901 | VALVE, RIM(TRITON) | 1 | |
| 5 | 42753-K24-G11 | VALVE, RIM(ACCURA) | 1 | |
| 6 | 44301-K0Z-900 | AXLE, FR. WHEEL | 1 | |
| 7 | 44311-K0Z-900 | COLLAR, FR. WHEEL SIDE | 2 | |
| 8 | 44515-K0Z-900 | RING, FR. PULSER | 1 | |
| 9 | 44620-K0Z-900 | COLLAR, FR. AXLE DISTANCE | 1 | |
| 10 | 44650-K0Z-900 | WHEEL SUB ASSY., FR. | 1 | |
| 11 | 44711-K0Z-901 | TIRE, FR.(MRF) (100/90-19 M/C 57H) | 1 | |
| 11 | 44711-K0Z-902 | TIRE, FR.(MRF) (100/90-19 M/C 57H) | 1 | |
| 12 | 45251-K0Z-901 | DISK, FR. BRAKE | 1 | |
| 13 | 90105-KSP-870 | BOLT, FRONT DISK, 8 X 24 | 7 | |
| 14 | 90106-K43-D20 | BOLT, FLANGE, 6X14(SH) | 1 | |
| 15 | 90123-K0Z-900 | BOLT, FLANGE, 6X12 | 1 | |
| 16 | 90131-KYJ-610 | BOLT, TORX, 5X10 | 3 | |
| 17 | 90690-MCA-003 | CLIP, CABLE, 14MM | 2 | |
| 18 | 91081-KYJ-711 | BEARING, RADIAL BALL, 6203UU (NEI) | 2 | |
| 19 | 91251-KGH-901 | DUST SEAL,27X40X4.5 | 2 |
