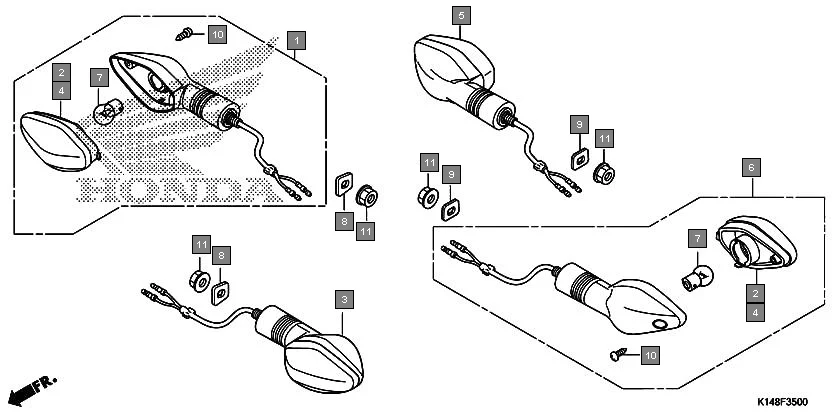

F-35 - WINKER
HONDA Dream Yuga CB110ME · 11 parts
Parts in This Assembly (11)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33400-KWS-901 | WINKER ASSY., R. FR.(12V 10W) | 1 | |
| 2 | 33403-KWS-901 | LENS COMP., R.(R. FR./L. RR.) | 2 | |
| 3 | 33450-KWS-901 | WINKER ASSY., L. FR.(12V 10W) | 1 | |
| 4 | 33453-KWS-901 | LENS COMP., L.(L. FR./R. RR.) | 2 | |
| 5 | 33600-K14-901 | WINKER ASSY., R. RR.(12V 10W) | 1 | |
| 6 | 33650-K14-901 | WINKER ASSY., L. RR.(12V 10W) | 1 | |
| 7 | 34930-KWA-930 | BULB, WINKER(12V 10W)(AMBER) | 4 | |
| 8 | 61315-K14-900 | PLATE, FR. WINKER | 2 | |
| 9 | 80103-KWS-900 | STAY, RR. WINKER | 2 | |
| 10 | 93901-34380 | SCREW TAPPING 4X12 | 4 | |
| 11 | 94050-10000 | NUT, FLANGE, 10MM | 4 | |
