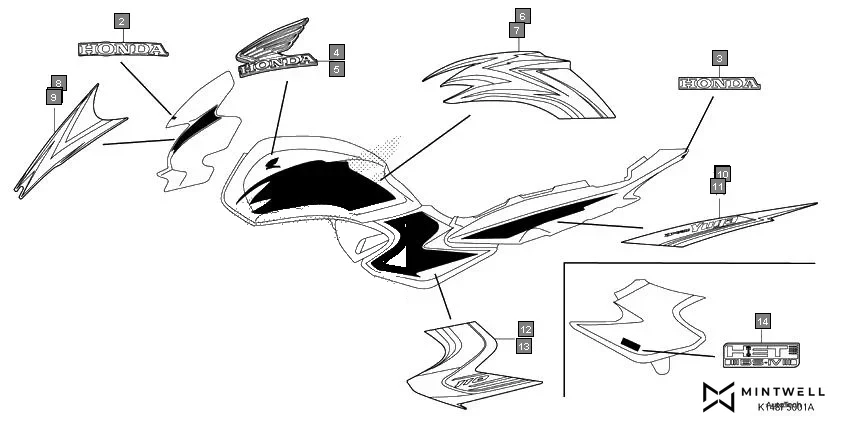

F-50-1 - STRIPE/MARK(CB110J)
HONDA Dream Yuga CB110J · 47 parts
Parts in This Assembly (47)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 2 | 86101-K14-900ZC | MARK, HONDA(70MM)*TYPE2* | 1 | |
| 3 | 86102-K14-900ZC | MARK, HONDA(60MM)*TYPE2* | 1 | |
| 4 | 86111-K14-670 | EMBLEM, R. WING(100MM) | 1 | |
| 5 | 86121-K14-670 | EMBLEM, L. WING(100MM) | 1 | |
| 6 | 86171-K14-C00ZA | STRIPE, R. FUEL TANK *TYPE6* | 1 | |
| 6 | 86171-K14-C00ZB | STRIPE, R. FUEL TANK *TYPE5* | 1 | |
| 6 | 86171-K14-C00ZC | STRIPE, R. FUEL TANK *TYPE4* | 1 | |
| 6 | 86171-K14-C00ZD | STRIPE, R. FUEL TANK *TYPE3* | 1 | |
| 6 | 86171-K14-C00ZE | STRIPE, R. FUEL TANK *TYPE2* | 1 | |
| 6 | 86171-K14-C00ZF | STRIPE, R. FUEL TANK *TYPE1* | 1 | |
| 7 | 86172-K14-C00ZA | STRIPE, L. FUEL TANK *TYPE6* | 1 | |
| 7 | 86172-K14-C00ZB | STRIPE, L. FUEL TANK *TYPE5* | 1 | |
| 7 | 86172-K14-C00ZC | STRIPE, L. FUEL TANK *TYPE4* | 1 | |
| 7 | 86172-K14-C00ZD | STRIPE, L. FUEL TANK *TYPE3* | 1 | |
| 7 | 86172-K14-C00ZE | STRIPE, L. FUEL TANK *TYPE2* | 1 | |
| 7 | 86172-K14-C00ZF | STRIPE, L. FUEL TANK *TYPE1* | 1 | |
| 8 | 86611-K14-C00ZA | STRIPE, R. FR. VISOR *TYPE5* | 1 | |
| 8 | 86611-K14-C00ZB | STRIPE, R. FR. VISOR *TYPE4* | 1 | |
| 8 | 86611-K14-C00ZC | STRIPE, R. FR. VISOR *TYPE3* | 1 | |
| 8 | 86611-K14-C00ZD | STRIPE, R. FR. VISOR *TYPE2* | 1 | |
| 8 | 86611-K14-C00ZE | STRIPE, R. FR. VISOR *TYPE1* | 1 | |
| 9 | 86612-K14-C00ZA | STRIPE, L. FR. VISOR *TYPE5* | 1 | |
| 9 | 86612-K14-C00ZB | STRIPE, L. FR. VISOR *TYPE4* | 1 | |
| 9 | 86612-K14-C00ZC | STRIPE, L. FR. VISOR *TYPE3* | 1 | |
| 9 | 86612-K14-C00ZD | STRIPE, L. FR. VISOR *TYPE2* | 1 | |
| 9 | 86612-K14-C00ZE | STRIPE, L. FR. VISOR *TYPE1* | 1 | |
| 10 | 86771-K14-C00ZA | STRIPE, R. SIDE COWL *TYPE5* | 1 | |
| 10 | 86771-K14-C00ZB | STRIPE, R. SIDE COWL *TYPE4* | 1 | |
| 10 | 86771-K14-C00ZC | STRIPE, R. SIDE COWL *TYPE3* | 1 | |
| 10 | 86771-K14-C00ZD | STRIPE, R. SIDE COWL *TYPE2* | 1 | |
| 10 | 86771-K14-C00ZE | STRIPE, R. SIDE COWL *TYPE1* | 1 | |
| 11 | 86772-K14-C00ZA | STRIPE, L. SIDE COWL *TYPE5* | 1 | |
| 11 | 86772-K14-C00ZB | STRIPE, L. SIDE COWL *TYPE4* | 1 | |
| 11 | 86772-K14-C00ZC | STRIPE, L. SIDE COWL *TYPE3* | 1 | |
| 11 | 86772-K14-C00ZD | STRIPE, L. SIDE COWL *TYPE2* | 1 | |
| 11 | 86772-K14-C00ZE | STRIPE, L. SIDE COWL *TYPE1* | 1 | |
| 12 | 86831-K14-C00ZA | STRIPE, R. SIDE COVER *TYPE5* | 1 | |
| 12 | 86831-K14-C00ZB | STRIPE, R. SIDE COVER *TYPE4* | 1 | |
| 12 | 86831-K14-C00ZC | STRIPE, R. SIDE COVER *TYPE3* | 1 | |
| 12 | 86831-K14-C00ZD | STRIPE, R. SIDE COVER *TYPE2* | 1 | |
| 12 | 86831-K14-C00ZE | STRIPE, R. SIDE COVER *TYPE1* | 1 | |
| 13 | 86832-K14-C00ZA | STRIPE, L. SIDE COVER *TYPE5* | 1 | |
| 13 | 86832-K14-C00ZB | STRIPE, L. SIDE COVER *TYPE4* | 1 | |
| 13 | 86832-K14-C00ZC | STRIPE, L. SIDE COVER *TYPE3* | 1 | |
| 13 | 86832-K14-C00ZD | STRIPE, L. SIDE COVER *TYPE2* | 1 | |
| 13 | 86832-K14-C00ZE | STRIPE, L. SIDE COVER *TYPE1* | 1 | |
| 14 | 86833-K43-900ZA | MARK, HET BS 4 *TYPE1* (R SIDE ONLY) | 1 | |
