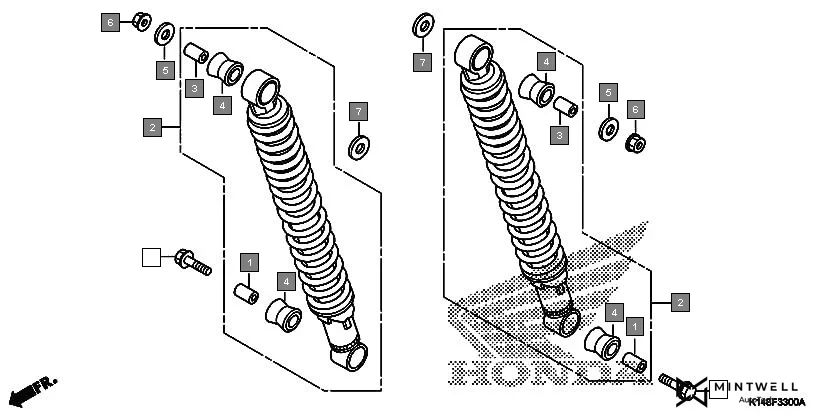

F-33 - REAR CUSHION(CB110D/MD)
HONDA Dream Yuga CB110J · 9 parts
Parts in This Assembly (9)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 51488-KTN-701 | COLLAR, RUBBER BUSH (UNDER) | 2 | |
| 2 | 52400-K14-901 | CUSHION ASSY., RR.(SHOWA) | 2 | |
| 3 | 52486-056-000 | COLLAR, RUBBER BUSH (UPPER) | 2 | |
| 4 | 52489-399-601 | BUSH, RUBBER (UPPER) | 4 | |
| 5 | 90551-KTE-910 | WASHER SPECIAL, 10 MM | 2 | |
| 6 | 94050-10000 | NUT, FLANGE, 10MM | 2 | |
| 7 | 94101-12000 | WASHER, PLAIN, 12MM | 2 | |
| 8 | 95801-10035-00 | BOLT, FLANGE, 10X35 | 2 | |
| 8 | 95802-10035-00 | BOLT, FLANGE, 10X35 | 2 | |
