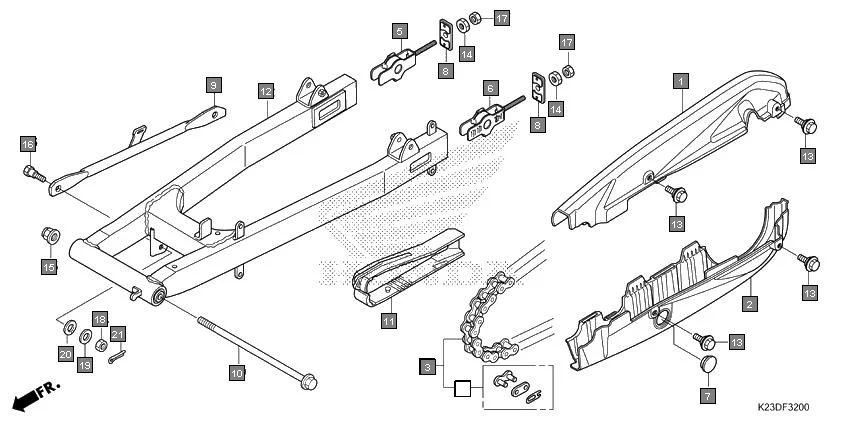

F-32 - SWINGARM
HONDA Dream Neo CB110CMH · 25 parts
Parts in This Assembly (25)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 40510-K14-900 | CASE, DRIVE CHAIN UPPER | 1 | |
| 2 | 40520-K14-900 | CASE, DRIVE CHAIN LOWER | 1 | |
| 3 | 40530-K14-901 | CHAIN, DRIVE(DAIDO)(DID420AD-118RB) | 1 | |
| 3 | 40530-K14-903 | CHAIN, DRIVE(LGB)(LGB R420BS-118L) | 1 | |
| 3 | 40530-K14-905 | CHAIN, DRIVE(TIDC)(TIDC420-118L) | 1 | |
| 4 | 40531-KST-941 | JOINT, DRIVE CHAIN(TIDC) | 1 | |
| 4 | 40531-KTE-912 | JOINT, DRIVE CHAIN(LGB) | 1 | |
| 4 | 40531-KWB-601 | JOINT, DRIVE CHAIN(DAIDO) | 1 | |
| 5 | 40543-K14-900 | ADJUSTER COMP., R. CHAIN | 1 | |
| 6 | 40544-K14-900 | ADJUSTER COMP., L. CHAIN | 1 | |
| 7 | 40545-KWV-010 | CAP, CHAIN CASE PEEP HOLE | 1 | |
| 8 | 40546-KWF-900 | CAP, SWINGARM END | 2 | |
| 9 | 43431-K14-930 | ARM COMP., RR. BRAKE STOPPER | 1 | |
| 10 | 52101-KZA-W00 | BOLT,SWINGARM PIVOT | 1 | |
| 11 | 52170-K14-900 | SLIDER, CHAIN | 1 | |
| 12 | 52200-K14-930 | SWINGARM SUB ASSY., RR. | 1 | |
| 13 | 90111-162-000 | BOLT, FLANGE, 6MM | 4 | |
| 14 | 90302-KBP-900 | NUT SPL 6 MM | 2 | |
| 15 | 90306-KTE-911 | NUT, CASTLE, 12 MM | 1 | |
| 16 | 92812-10000 | BOLT A BRAKE STOPPER ARM | 1 | |
| 17 | 94001-06000-0S | NUT, HEX., 6 MM | 2 | |
| 18 | 94001-08000-0S | NUT, HEX., 8 MM | 1 | |
| 19 | 94101-08000 | WASHER, PLAIN, 8MM | 1 | |
| 20 | 94111-10000 | WASHER, SPRING, 10MM | 1 | |
| 21 | 94201-20150 | PIN, SPLIT, 2.0 X 15 | 1 | |
