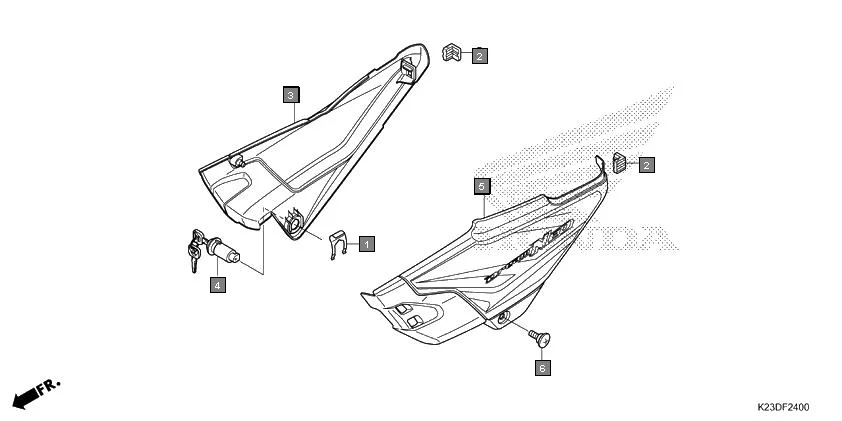

F-24 - SIDE COVER
HONDA Dream Neo CB110CMH · 12 parts
Parts in This Assembly (12)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 75581-GN8-920 | SET SPG LOCK KEY | 1 | |
| 2 | 83502-KCC-900 | GROMMET, SIDE COVER | 2 | |
| 3 | 83520-K23-D60ZA | COVER SET, R. SIDE(WL) *TYPE3* | 1 | |
| 3 | 83520-K23-D60ZB | COVER SET, R. SIDE(WL) *TYPE2* | 1 | |
| 3 | 83520-K23-D60ZC | COVER SET, R. SIDE(WL) *TYPE1* | 1 | |
| 3 | 83520-K23-D60ZD | COVER SET, R. SIDE(WL) *TYPE4* | 1 | |
| 4 | 83550-K14-901 | LOCK, SIDE COVER(JAY USHIN) | 1 | |
| 5 | 83620-K23-D60ZA | COVER SET, L. SIDE(WL) *TYPE3* | 1 | |
| 5 | 83620-K23-D60ZB | COVER SET, L. SIDE(WL) *TYPE2* | 1 | |
| 5 | 83620-K23-D60ZC | COVER SET, L. SIDE(WL) *TYPE1* | 1 | |
| 5 | 83620-K23-D60ZD | COVER SET, L. SIDE(WL) *TYPE4* | 1 | |
| 6 | 90104-KYY-900 | SCREW, SPECIAL, 6X17 | 1 | |
