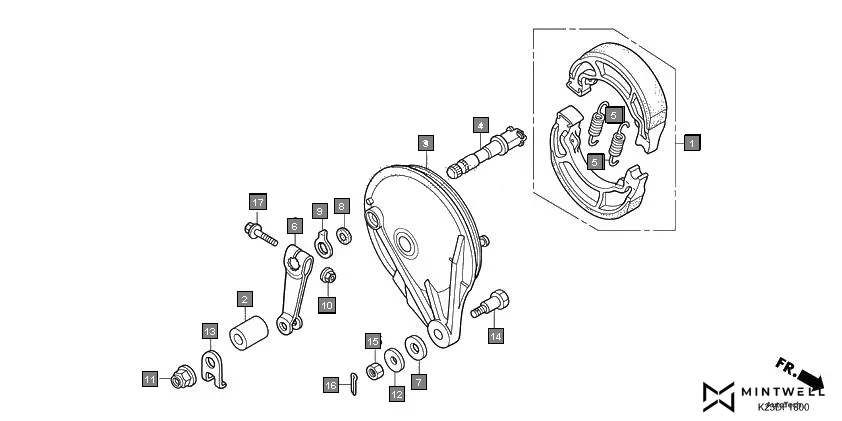

F-18 - REAR BRAKE PANEL
HONDA Dream Neo CB110CMH · 22 parts
Parts in This Assembly (22)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 06430-KTN-700 | SHOE SET, BRAKE(JB) | 1 | |
| 1 | 06430-KVT-D10 | SHOE SET, BRAKE(ASK) | 1 | |
| 2 | 42313-K14-900 | COLLAR, RR. BRAKE PANEL SIDE | 1 | |
| 3 | 43100-K63-D30ZA | PANEL COMP., RR. BRAKE *NH303M* MAT AXIS GRAY METALLIC | 1 | |
| 4 | 43141-KTC-900 | CAM, REAR BRAKE | 1 | |
| 5 | 45133-KCC-900 | SPRING, FR. BRAKE SHOE | 2 | |
| 5 | 43151-329-000 | SPRING, BRAKE SHOE (ASK) | 2 | |
| 5 | 45133-KPL-900 | SPRING, FR.BRAKE SHOE (ASK)(FOR RR.) | 2 | |
| 6 | 43410-KZA-W00 | ARM,REAR BRAKE | 1 | |
| 7 | 43434-ME1-670 | RUBBER, STOPPER ARM | 1 | |
| 8 | 45134-250-000 | DUST SEAL, BRAKE CAM | 1 | |
| 9 | 45145-KFM-900 | INDICATOR, FR. BRK | 1 | |
| 10 | 90302-KST-942 | NUT, FLANGE, 6MM (LEO FASTENERS) | 1 | |
| 10 | 90302-KTE-911 | NUT FLANGE PT 6MM | 1 | |
| 11 | 90306-KTE-911 | NUT, CASTLE, 12 MM | 1 | |
| 12 | 90505-425-000 | WASHER, 8 MM | 1 | |
| 13 | 90558-KTR-900 | WASHER, RR AXLE (RIGHT) | 1 | |
| 14 | 92811-10000 | BOLT A BRAKE STOPPER | 1 | |
| 15 | 94001-08000-0S | NUT, HEX., 8 MM | 1 | |
| 16 | 94201-20150 | PIN, SPLIT, 2.0 X 15 | 1 | |
| 17 | 95701-06035-00 | BOLT, FLANGE, 6X35 | 1 | |
| 17 | 95702-06035-00 | BOLT, FLANGE, 6X35 | 1 | |
