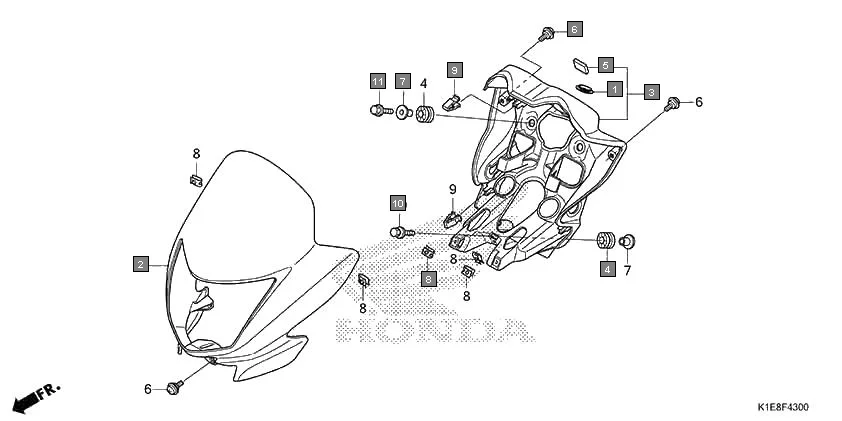

F-43-FRONT VISOR
HONDACD 110 Dream CB110CMDR · 14 parts
Parts in This Assembly (14)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 37312-K67-900 | GROMMET, COMBINATION SWITCH | 1 | |
| 2 | 61300-K1E-D00ZF | VISOR SET, FR.(WL) *TYPE1* | 1 | |
| 3 | 61310-K1E-D00 | COVER COMP., HEADLIGHT RR. | 1 | |
| 4 | 64615-KR1-860 | RUBBER, LOWER COWL MOUNTING | 4 | |
| 5 | 86150-KWS-601 | EMBLEM, PRODUCT(SJS) | 1 | |
| 5 | 86150-GFC-901 | EMBLEM, PRODUCT(MARUI) | 1 | |
| 5 | 86150-GFC-902 | EMBLEM, PRODUCT(UEHARA) | 1 | |
| 5 | 86150-GFC-890 | EMBLEM, PRODUCT | 1 | |
| 6 | 90101-GE0-000 | SCREW, HINGE PATCH | 3 | |
| 7 | 90310-KWS-900 | COLLAR, FR. COWL | 4 | |
| 8 | 90320-KTE-600 | NUT, SPRING, 5MM | 5 | |
| 9 | 90666-SDA-A01 | CLIP , SNAP FIT (PO) | 3 | |
| 10 | 93404-06025-07 | BOLT-WASHER, 6X25 | 2 | |
| 11 | 95701-06025-08 | BOLT, FLANGE, 6X25 | 2 |
