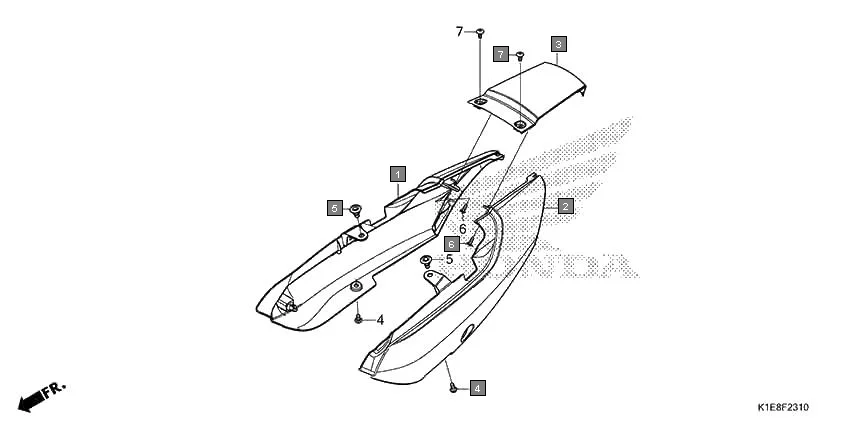

F-23-10-REAR COWL
HONDACD 110 Dream CB110CMDR · 7 parts
Parts in This Assembly (7)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 77246-K1E-D00ZA | COWL, R. RR.(WOL) *NH1* BLACK | 1 | |
| 2 | 77256-K1E-D00ZA | COWL, L. RR.(WOL) *NH1* BLACK | 1 | |
| 3 | 77280-K1E-D00ZA | COWL SET, RR. CENTER(WL) *TYPE1* | 1 | |
| 4 | 90101-GE0-000 | SCREW, HINGE PATCH | 2 | |
| 5 | 90601-PV3-003 | CLIP, AIR INTAKE DUCT PUSH | 2 | |
| 6 | 93903-24380 | SCREW TAPPING, 4 X 12 | 2 | |
| 7 | 93903-35280 | SCREW, TAPPING, 5 X 12 | 2 |
