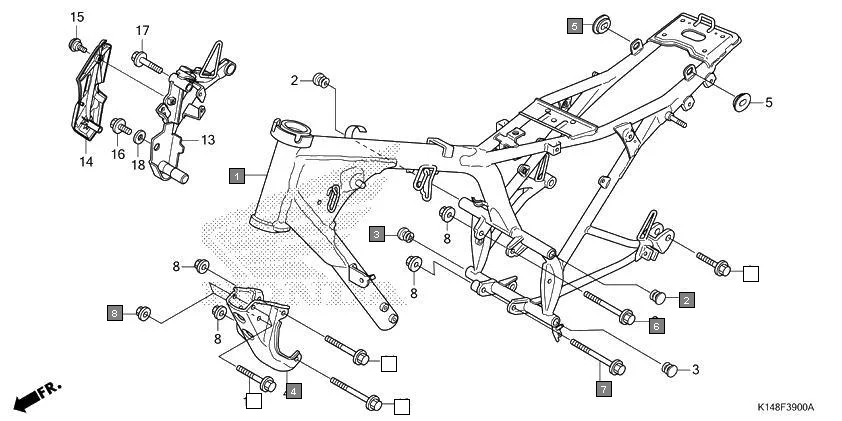

F-39 - FRAME BODY
HONDA Dream Yuga CB110AMH · 16 parts
Parts in This Assembly (16)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 50100-K14-930 | BODY COMP., FRAME | 1 | |
| 2 | 50315-H06-000 | CAP, PIPE END | 2 | |
| 3 | 50315-KYY-900 | CAP, PIPE END | 2 | |
| 4 | 50351-K14-910 | PLATE, FR. ENGINE HANGER | 1 | |
| 5 | 83542-KPN-900 | GROMMET, SIDE COVER | 2 | |
| 6 | 90019-399-010 | BOLT, FLANGE, 10 X 110 | 1 | |
| 7 | 90132-K14-900 | BOLT, FLANGE, 10X135 | 1 | |
| 8 | 94050-10000 | NUT, FLANGE, 10MM | 6 | |
| 9 | 95701-08035-00 | BOLT, FLANGE, 8 X 35 | 1 | |
| 9 | 95702-08035-00 | BOLT, FLANGE, 8X35 | 1 | |
| 10 | 95801-10065-00 | BOLT FLANGE 10X65 | 2 | |
| 10 | 95802-10065-00 | BOLT, FLANGE, 10X65 | 2 | |
| 11 | 95801-10085-00 | BOLT FLANGE 10X85 | 1 | |
| 11 | 95802-10085-00 | BOLT, FLANGE, 10X85 | 1 | |
| 12 | 95801-10095-00 | BOLT FLANGE 10X95 | 1 | |
| 12 | 95802-10095-00 | BOLT, FLANGE, 10X95 | 1 | |
