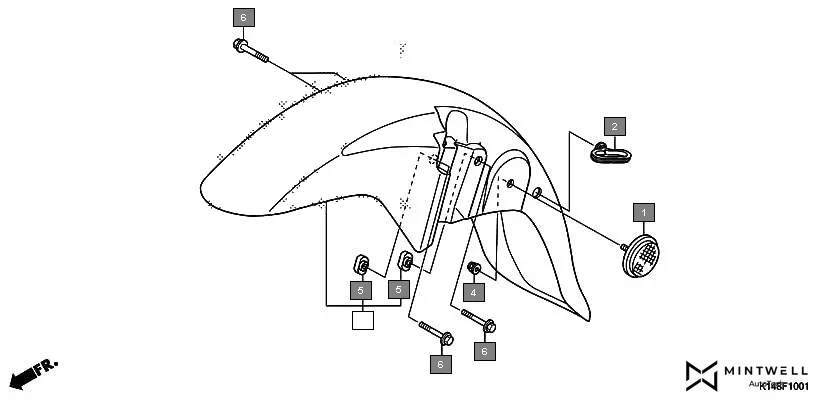

F-10-1 - FRONT FENDER(CB110AM)
HONDA Dream Yuga CB110AMH · 8 parts
Parts in This Assembly (8)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33740-KTE-601 | REFLECTOR, FR. SIDE REFLEX | 2 | |
| 2 | 45451-KTE-600 | GUIDE, FR. FENDER CABLE | 1 | |
| 3 | 61100-K14-960ZA | FENDER, FR. *R321* SPORTS RED | 1 | |
| 3 | 61100-K14-960ZB | FENDER, FR. *NH1* BLACK | 1 | |
| 3 | 61100-K14-960ZC | FENDER, FR. *NHB63P* PEARL AMAZING WHITE | 1 | |
| 4 | 90302-KTE-911 | NUT FLANGE PT 6MM | 2 | |
| 5 | 90304-K14-960 | NUT, 6MM | 4 | |
| 6 | 96001-06020-00 | BOLT, FLANGE, SH. 6 X 20 | 4 | |
