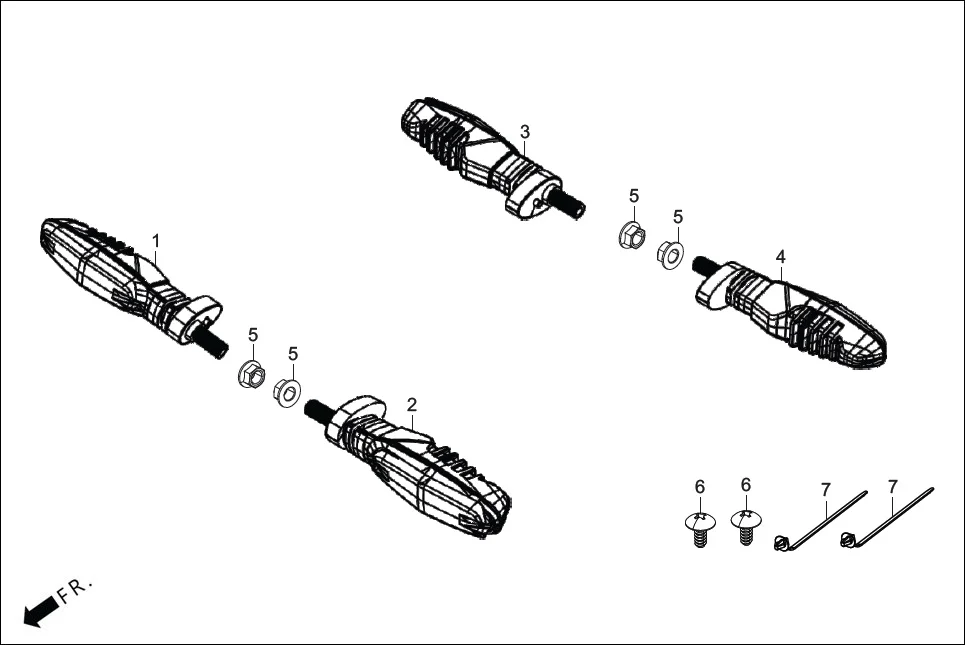

F-22-FR./RR. WINKERS
HeroXTREME 250R(Mar., 2025) · 7 parts
Parts in This Assembly (7)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33400-ACD-001 | WINKER ASSY R FR | 2 | |
| 2 | 33450-ACD-001 | WINKER ASSY L FR | 2 | |
| 3 | 33600-ACD-002 | WINKER ASSY R RR | 1 | |
| 4 | 33650-ACD-002 | WINKER ASSY L RR | 1 | |
| 5 | 94050-08000 | NUT, FLANGE, 8MM | 4 | |
| 6 | 93903-25280 | SCREW, TAPPING 5X12 | 2 | |
| 7 | 91541-ABG-000 | CLIP BAND | 2 |
