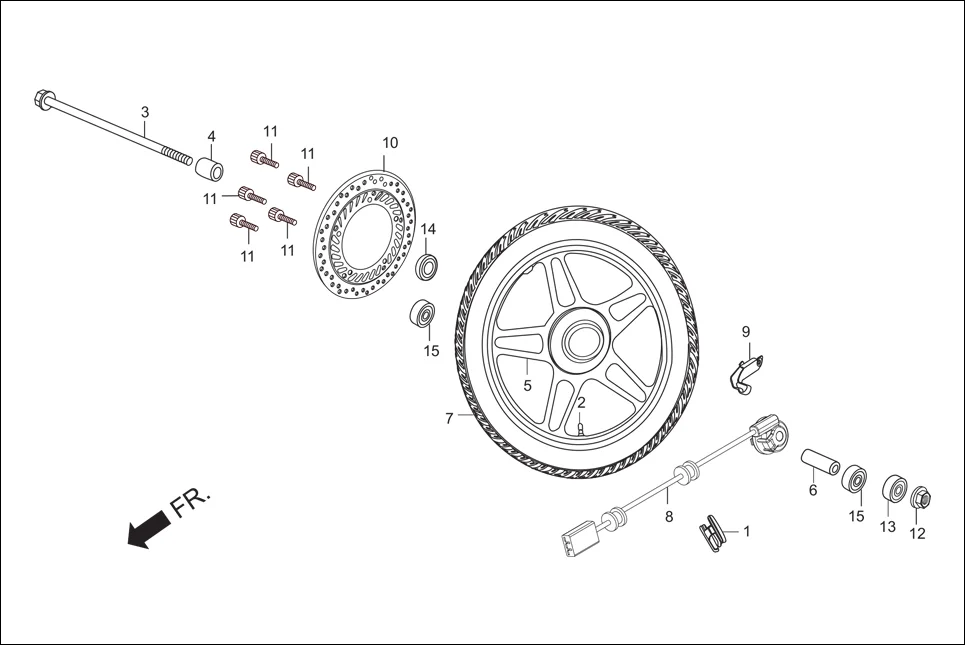

F-9-DISC - FRONT WHEEL
Hero Xtreme (Apr, 2014) · 15 parts
Parts in This Assembly (15)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 42704-MB0-000 | WEIGHT, BALANCE 10 | 1 | |
| 1 | 42705-MB0-000 | WEIGHT, BALANCE 20 | 1 | |
| 1 | 42706-MB0-000 | WEIGHT, BALANCE 30 | 1 | |
| 2 | 42753-KWF-90099 | RIM VALVE | 1 | |
| 3 | 44301-KSP-900 | AXLE, FRONT WHEEL | 1 | |
| 4 | 44311-KRC-900 | COLLAR, FR. WHEEL SIDE | 1 | |
| 5 | K44446AABBH60S | KIT, WHEEL COMP. FRONT | 1 | |
| 6 | 44620-400-000 | COLLAR, FRONT DISTANCE | 1 | |
| 7 | 44711-KRY-971 | TYRE,FR | 1 | |
| 8 | 44800-KVE-861 | SENSOR ASSY SPEED | 1 | |
| 9 | 45164-KVN-970 | CLAMPER , SP SENSOR | 1 | |
| 10 | 45251-AAB-000 | DISK FR BRAKE | 1 | |
| 12 | 90306-KF0-000 | NUT, FLANGE, 12 MM | 1 | |
| 13 | 91251-KPH-901 | DUST SEAL, 21 X 37 X 7 | 1 | |
| 15 | 96150-60050-10 | BEARING, BALL RADIAL, 6005 | 2 | |
