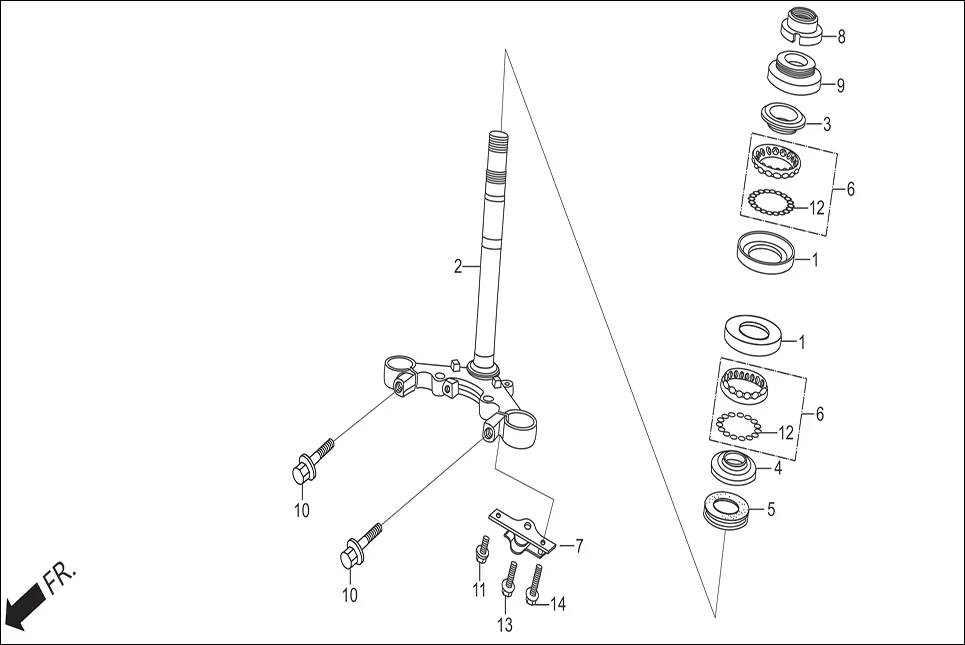

F-5-STEERING STEM
HeroXtreme (Apr, 2014) · 14 parts
Parts in This Assembly (14)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 50301-KTR-900 | RACE, STEERING BALL | 2 | |
| 2 | 53200-KVE-860 | STEM COMP STRG | 1 | |
| 3 | 53211-268-010 | RACE, STEERING TOP CONE | 1 | |
| 4 | 53212-200-000 | RACE, STEERING BOTTOM CONE | 1 | |
| 5 | 53214-200-000 | DUST SEAL, STEERING HEAD | 1 | |
| 6 | 53215-KTR-900 | BALL, ASSY. STEERING | 2 | |
| 7 | 53216-KVN-970 | STAY,CLAMPER | 1 | |
| 8 | 53220-KRY-970 | THREAD COMP STRG TOP. | 2 | |
| 9 | 53222-KTR-900 | MUD GUARD, STEERING HEAD TOP | 1 | |
| 10 | 95701-08035-07 | BOLT, FLANGE, 8X35 | 2 | |
| 11 | 96001-06012-07 | BOLT, FLANGE, SH., 6 X 12 | 1 | |
| 12 | 96211-08000 | BALL STEEL 8 MM | 32 | |
| 13 | 96700-06012-07 | BOLT, SOCKET, 6 X 12 | 1 | |
| 14 | 96700-06020-07 | BOLT, SOCKET, 6 X 20 | 1 |
