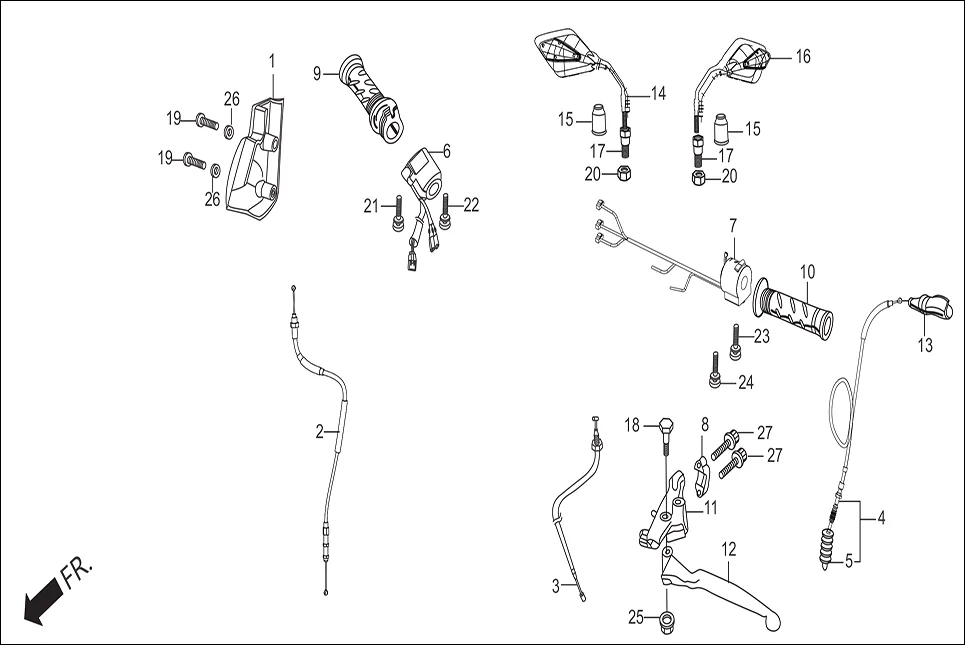

F-3 - HANDLE LEVER / SWITCH / CABLE
Hero Xtreme (Apr, 2014) · 35 parts
Parts in This Assembly (35)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 16150-KTN-700H | COVER THROTTLE CABLE | 1 | |
| 2 | 17910-KVE-860 | CABLE COMP,THROT | 1 | |
| 3 | 17950-KVE-860 | CABLE COMP CHOKE | 1 | |
| 4 | 22870-KVE-860 | CABLE COMP CLUTCH | 1 | |
| 5 | 22871-KTN-700 | BOOT, CLUTCH CABLE | 1 | |
| 6 | 35150-KVE-861 | SWITCH ASSY., LT. STARTING | 1 | |
| 7 | 35200-AAB-000 | SW ASSY WINKER | 1 | |
| 8 | 45517-166-000 | HOLDER, MASTER CYLINDER | 1 | |
| 9 | 53140-KVE-860 | GRIP COMP THROT | 1 | |
| 10 | 53166-KVE-860 | GRIP L HANDLE | 1 | |
| 11 | 53172-KRC-900 | BRACKET, HANDLE LEVER | 1 | |
| 12 | 53178-KFN-850 | LEVER COMP., L HANDLE | 1 | |
| 13 | 53182-KFN-850 | BOOT, L HANDLE LEVER | 1 | |
| 14 | 88110-AAB-000R | MIRROR AASY R BACK(BLK,NH-1) | 1 | |
| 14 | 88110-AAB-000S | MIRROR AASY R BACK(SRD,R-321) | 1 | |
| 14 | 88110-AAB-000T | MIRROR AASY R BACK(DSM,NH-A30M) | 1 | |
| 14 | 88110-AAB-000U | MIRROR AASY R BACK(BOM,YR-254M) | 1 | |
| 14 | 88110-AAB-000V | MIRROR AASY R BACK(FBM,PB-380M) | 1 | |
| 15 | 88114-198-D10 | CAP, LOCK NUT | 2 | |
| 16 | 88120-AAB-000R | MIRROR ASSY L BACK(BLK,NH-1) | 1 | |
| 16 | 88120-AAB-000S | MIRROR ASSY L BACK(SRD,R-321) | 1 | |
| 16 | 88120-AAB-000T | MIRROR ASSY L BACK(DSM,NH-A30M) | 1 | |
| 16 | 88120-AAB-000U | MIRROR ASSY L BACK(BOM,YR-254M) | 1 | |
| 16 | 88120-AAB-000V | MIRROR ASSY L BACK(FBM,PB-380M) | 1 | |
| 17 | 90003-KCC-840 | BOLT, ADPT.10MM | 2 | |
| 18 | 90113-438-000 | BOLT, HANDLE LEVER PIVOT | 1 | |
| 19 | 90140-KAE-000 | SCREW, PAN, 4 X 28 | 2 | |
| 20 | 90201-MW3-620 | NUT, HEX., 10MM | 2 | |
| 21 | 93892-05020-07 | SCREW, WASHER, 5X20 | 1 | |
| 22 | 93892-05025-07 | SCREW, WASHER, 5X25 | 1 | |
| 23 | 93892-05035-07 | SCREW, WASHER, 5X35 | 1 | |
| 24 | 93892-05045-07 | SCREW, WASHER, 5X45 | 1 | |
| 25 | 94050-06000 | NUT, FLANGE, 6 MM | 1 | |
| 26 | 94101-04000 | WASHER, PLAIN 4 MM | 2 | |
| 27 | 96001-06022-07 | BOLT, FLANGE, SH.6X22 | 2 | |
