F-28 - GUARD FRONT

Hero Xtreme (Apr, 2014) · 3 parts

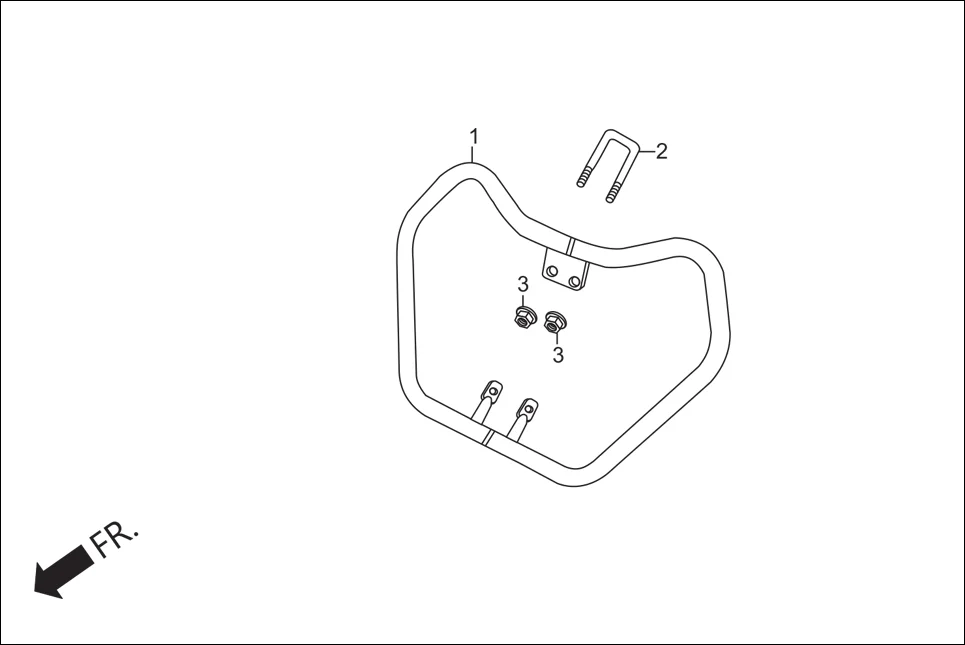

F-28 GUARD FRONT assembly diagram for Hero Xtreme (Apr, 2014)

Parts in This Assembly (3)

Ref # Part Number Description Qty
1 50803-KVE-900 GUARD, FRONT 1
2 50805-KVE-900 U-CLAMP 1
3 94050-08070 NUT, FLANGE, 8MM 2
